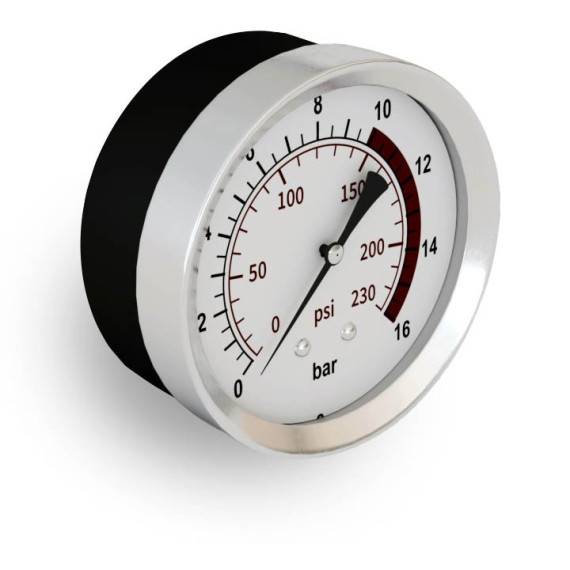

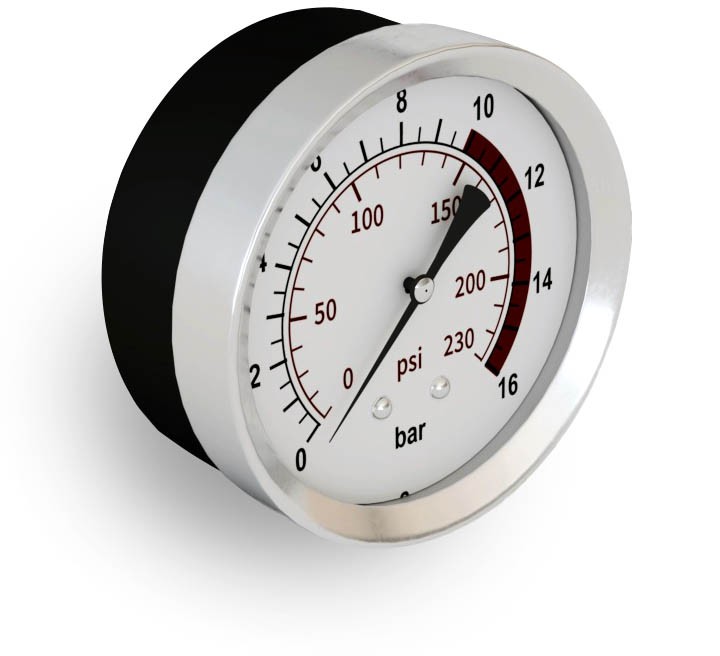

Mechanical manometer of the SA-GS series

Name: Mechanical manometer of the SA-GS series
Brand: Specialist
SKU: SA-GS40-06
Price: 270.30 UAH
Availability: InStock

In Stock

Diameter

63 mm 50 mm 40 mm

Робочий тиск

0-10 бар 0-16 бар 0-6 бар 0-40 бар

Різьба приєднання

G 1/4 G 1/8

Model

Manufacturer

Specialist

from 219,18 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 12 variants


Name

Model Price Availability Qty

Action

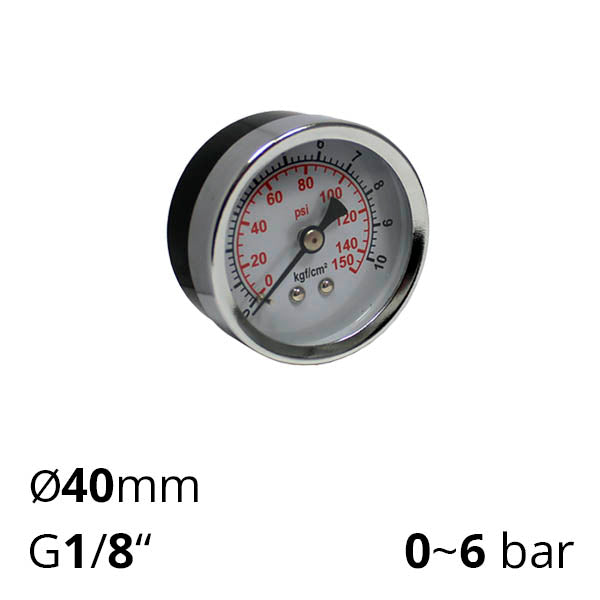

SA-GS40-06

Mechanical manometer of the SA-GS series

Diameter=40 mm Робочий тиск=0-6 бар Різьба приєднання=G 1/8

SA-GS40-06

270,30 UAH

In Stock

SA-GS40-10

Mechanical manometer of the SA-GS series

Diameter=40 mm Робочий тиск=0-10 бар Різьба приєднання=G 1/8

SA-GS40-10

239,10 UAH

In Stock

SA-GS40-16

Mechanical manometer of the SA-GS series

Diameter=40 mm Робочий тиск=0-16 бар Різьба приєднання=G 1/8

SA-GS40-16

270,30 UAH

In Stock

SA-GS40-40

Mechanical manometer of the SA-GS series

Diameter=40 mm Робочий тиск=0-40 бар Різьба приєднання=G 1/8

SA-GS40-40

270,30 UAH

In Stock

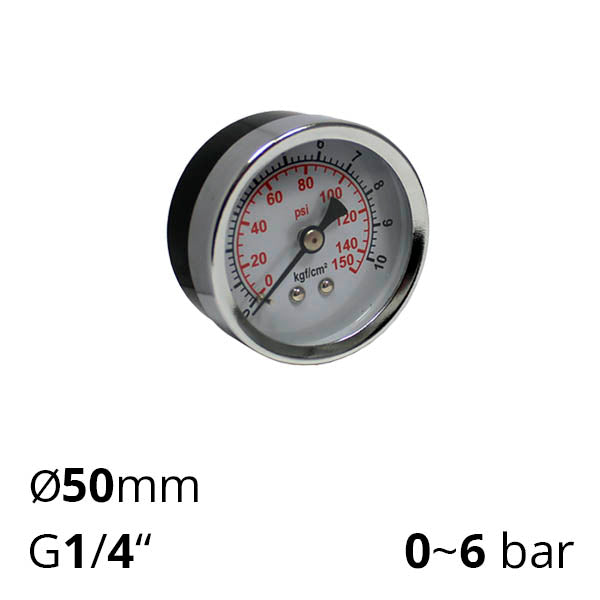

SA-GS50-06

Mechanical manometer of the SA-GS series

Diameter=50 mm Робочий тиск=0-6 бар Різьба приєднання=G 1/4

SA-GS50-06

270,30 UAH

In Stock

SA-GS63-06

Mechanical manometer of the SA-GS series

Diameter=63 mm Робочий тиск=0-6 бар Різьба приєднання=G 1/4

SA-GS63-06

219,18 UAH

In Stock

SA-GS50-10

Mechanical manometer of the SA-GS series

Diameter=50 mm Робочий тиск=0-10 бар Різьба приєднання=G 1/4

SA-GS50-10

270,30 UAH

In Stock

SA-GS63-10

Mechanical manometer of the SA-GS series

Diameter=63 mm Робочий тиск=0-10 бар Різьба приєднання=G 1/4

SA-GS63-10

219,18 UAH

In Stock

SA-GS50-16

Mechanical manometer of the SA-GS series

Diameter=50 mm Робочий тиск=0-16 бар Різьба приєднання=G 1/4

SA-GS50-16

259,86 UAH

In Stock

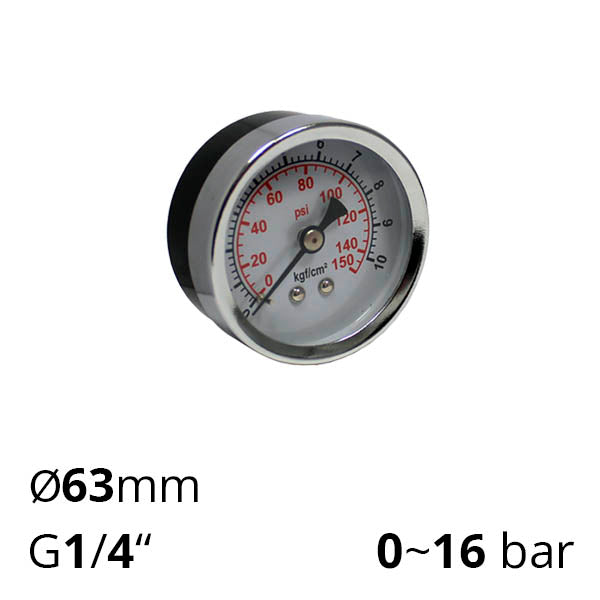

SA-GS63-16

Mechanical manometer of the SA-GS series

Diameter=63 mm Робочий тиск=0-16 бар Різьба приєднання=G 1/4

SA-GS63-16

219,18 UAH

In Stock

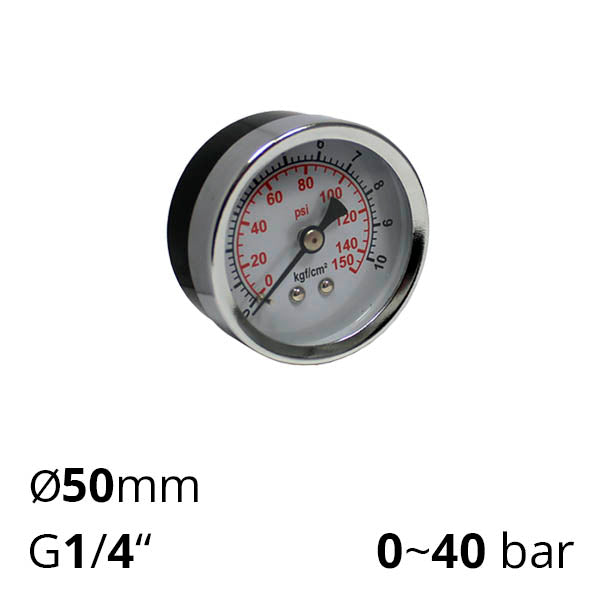

SA-GS50-40

Mechanical manometer of the SA-GS series

Diameter=50 mm Робочий тиск=0-40 бар Різьба приєднання=G 1/4

SA-GS50-40

301,44 UAH

In Stock

SA-GS63-40

Mechanical manometer of the SA-GS series

Diameter=63 mm Робочий тиск=0-40 бар Різьба приєднання=G 1/4

SA-GS63-40

219,18 UAH

In Stock

Technical specifications

Thread

G 1/4, G 1/8

Working pressure

0-10 бар, 0-16 бар, 0-40 бар, 0-6 бар

Діаметр

40 мм, 50 мм, 63 мм

Description

The SA-GS series mechanical pressure gauge is designed for measuring the pressure of compressed air or other non-corrosive gases. These gauges can measure pressure above atmospheric up to 40 bar (depending on the scale of the selected model).

The gauges have an external tapered pipe thread PT 1/8″ or PT 1/4″, which can be used for connecting to devices with an internal cylindrical pipe thread G1/8″ or G1/4″ respectively.

GS type mechanical gauges are included with regulators, filter-regulators, and air preparation units. They can also be installed directly onto sections of pneumatic lines.

Supply Package:

Pressure Gauge

Advantages

GS series mechanical gauges are inexpensive, reliable, and do not require frequent maintenance;
The gauge is easy to install on any section of a pneumatic line.

Code

additional information

When selecting a pressure gauge, it is advisable for its scale to be 25% greater than the range of working pressure. That is, if you need to measure pressure in a pneumatic system with a working pressure of 10 bar, we recommend ordering a gauge rated for 0-16 bar.

Constructively, the gauge is a Bourdon tube type deformation gauge.
