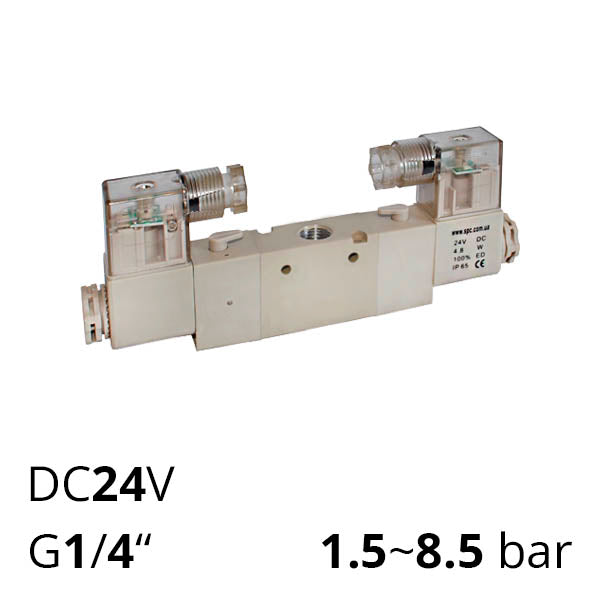

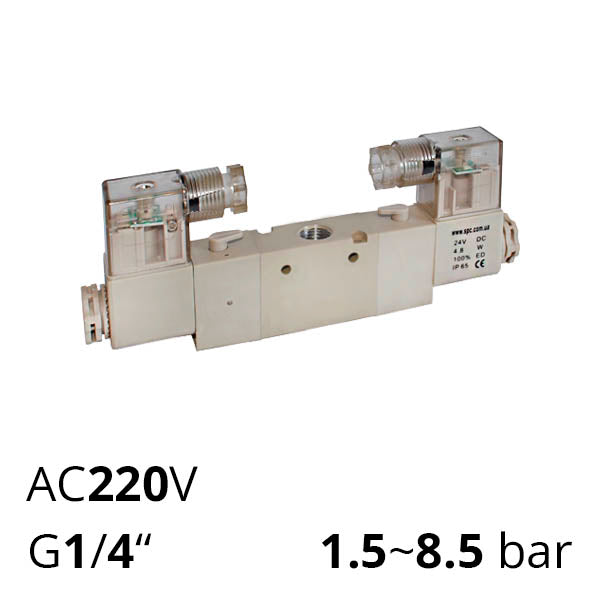

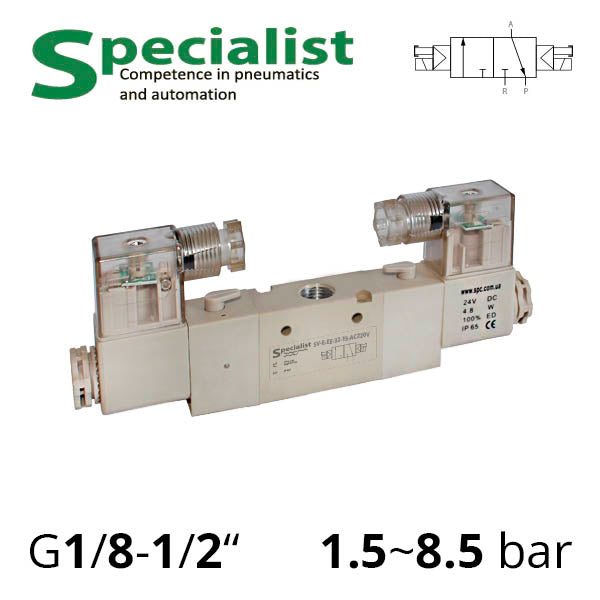

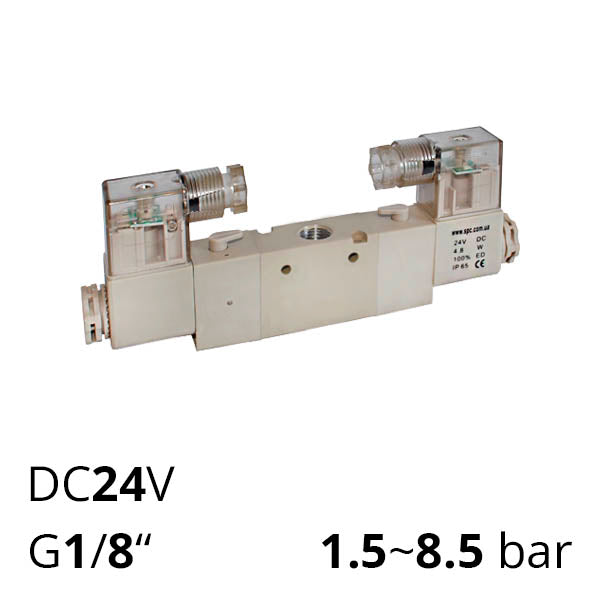

Three-line pneumatic distributors with double-sided electro-pneumatic control have three connection ports:
These 3/2 pneumatic valves with electrical control are bistable (the valve remains open or closed when power is disconnected until a new control signal is sent to the appropriate coil).
The client can order standard or explosion-proof solenoid coils, with a diode on the connector or without one, as well as with necessary electrical specifications:
All pneumatic distributors can be supplied according to NAMUR standard. The series of pneumatic distributors (C, D, E) are selected taking into account the maximum flow of compressed air.
| Model | SV-C-EE-32-06 | SV-C-EE-32-08 | SV-D-EE-32-10 | SV-E-EE-32-15 |
|---|---|---|---|---|
| Number of Lines/Positions | 3/2 | 3/2 | 3/2 | 3/2 |
| Effective Cross-sectional Area | 14 mm2 (CV=0.78) |
16 mm2 (CV=0.89) |
30 mm2 (CV=1.67) |
50 mm2 (CV=2.79) |
| Inlet Connection | G1/8″ | G1/4″ | G3/8″ | G1/2″ |
| Outlet Access | G1/8″ | G1/4″ | G3/8″ | G1/2″ |
| Exhaust Connection | G1/8″ | G1/4″ | G3/8″ | G1/2″ |
| Nominal Flow Rate | 600 L/min | 850 L/min | 1400 L/min | 2500 L/min |
| Working Medium | Air, filtration accuracy no less than 40 microns | |||
| Control Type | Electro-pneumatic (pilot), pneumatic (direct) | |||
| Operating Pressure Range | 1.5-8 bar | |||
| Max. Inlet Pressure | 12 bar | |||
| Operating Temperature Range | -5...+50 °C (in dry air without moisture) | |||
| Supply Voltage | 12 V DC (2.4 W); 24 V DC (3 W); 220 V AC (2.5 VA) | |||
| Allowed Supply Voltage Variation | -15%...+10% | |||
| Protection Degree, Insulation Class | IP65, Class F | |||
| Max. Operating Frequency | 5 cycles/sec | |||
| Min. Switching Time | 0.05 s | |||
