Pneumatic pedal 5/2 series SV-K-FS-52-08

The pneumatic foot pedal is a pneumatic distributor pedal 5/2 with foot control of the SV-K-FS-52-08 series, designed to work with compressed air at a working pressure from 0 to 8.5 bar. The pneumatic pedal is ideal for equipment of semi-automatic production machines with pneumatic drive (pneumatic presses) - machines for setting rhinestones, clothing rivets, banner grommets, leather embossing, packaging, bending machines, tyre fitting, etc. Typically, the pneumatic pedal controls a double-acting pneumatic cylinder on such installations.

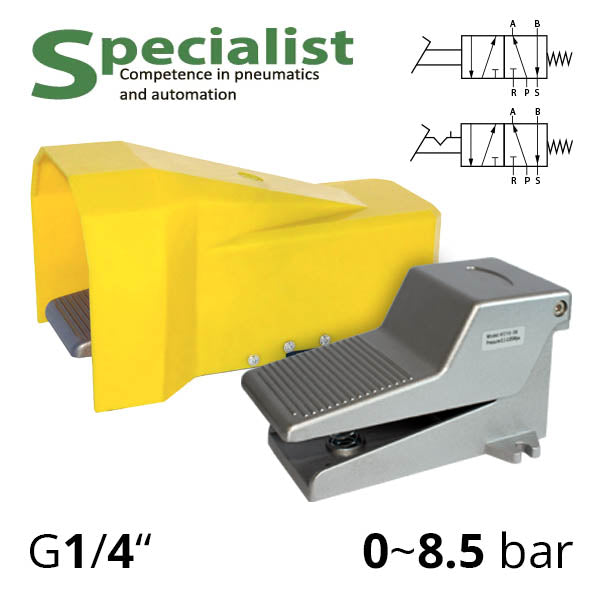

Types of pedals:

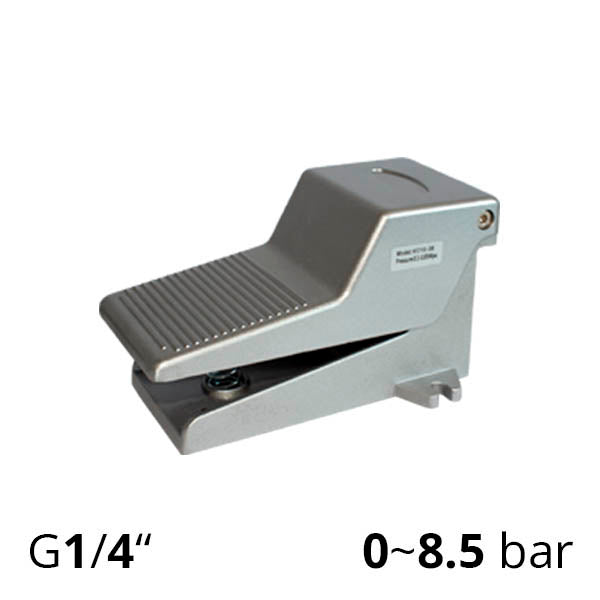

• "Standard" — pedal without fixation
• "L" — pedal with fixation

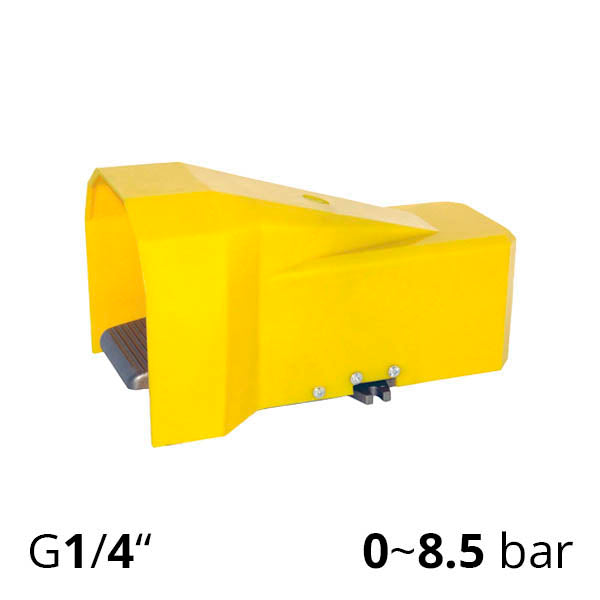

• "G" — pedal with protective plastic cover
• "LG" — pedal with protective plastic cover and fixation

Five-line distributor pedals have five holes on the body:

1. "P" — input for connecting compressed air supply
2. "A" — output 1 for connection
3. "ExA" — exhaust 1
4. "B" — output 2 for connection
5. "ExB" — exhaust 2

The input-output holes with letter designation have the same size of connection thread — G1/4″. The exhaust holes are designed to relieve pressure from the outputs; pneumatic silencers can be installed in them.

Advantages of the pneumatic foot pedal SV-K-FS-52-08

• Unlike electro-pneumatic distributors, which operate at a pressure from 1.5 bar, foot pneumatic pedals can operate with lower air pressure — from 0 bar;
• Foot control is very convenient, allowing for faster processes and improved quality of finished products, as the operator's hands are free during pressing;
• The "Specialist" company is a direct importer of SV-K-FS-52-08 to Ukraine, so we guarantee the best price-quality ratio.

How to select pneumatic pedals for pneumatic tools?

The graph shows the dependency between air consumption and pressure drop on foot pneumatic pedals G1/4″.
