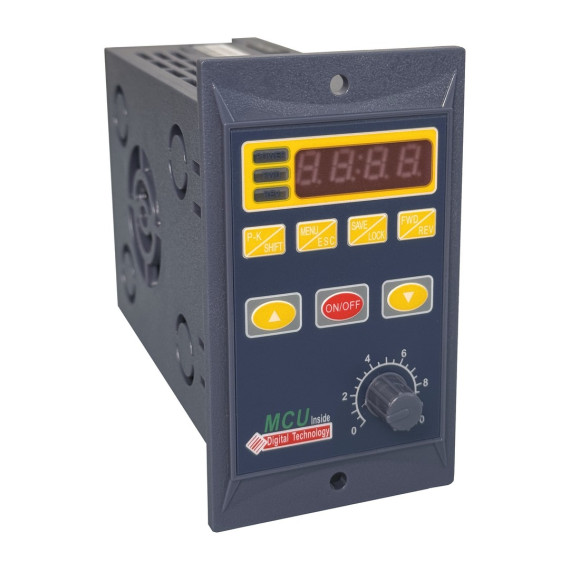

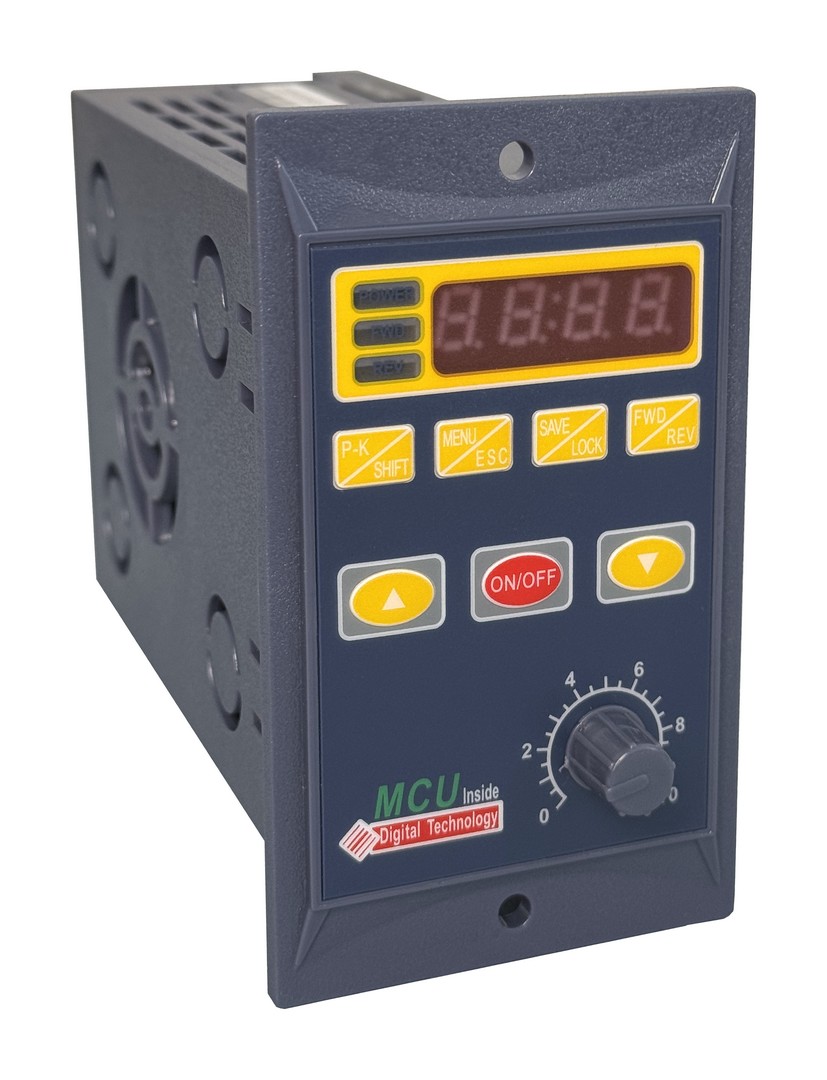

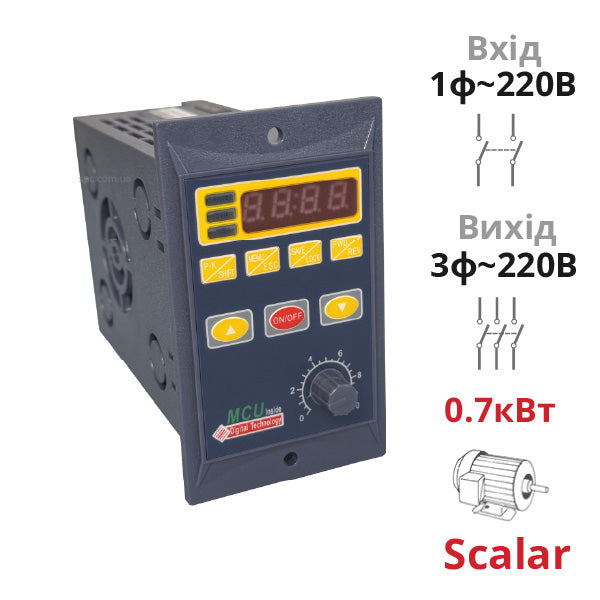

Scalar frequency converter 0.7 kW, 1F-3F 220V (SPLC-US-B-0R7G2)

Name: Scalar frequency converter 0.7 kW, 1F-3F 220V (SPLC-US-B-0R7G2)
Brand: Specialist
SKU: SPLC-US-B-0R7G2
Price: 1972.56 UAH
Availability: InStock

In Stock

Product Code:

SPLC-US-B-0R7G2

Brand:

Specialist

3 034,72 UAH

-35%

1 972,56 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar control

Output frequency

0.0 to 300 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

0.7 kW

Description

Scalar frequency inverter for electric motor 0.7 kW (750 W) model SPLC-US-B-0R7G2 is an affordable low-power frequency inverter, suitable for controlling the rotation speed of small fans, pumps, speeds of belt conveyors, and other control objects using three-phase asynchronous motors 220V with power up to 750W. The frequency inverter SPLC-US-B-0R7G2 is powered by a household single-phase network of 220 Volts.

Table - Main technical characteristics of frequency inverter SPLC-US-B-0R7G2
Input Voltage	1Ph 220 V
Output Voltage	3Ph 220 V
Output Power	up to 0.7 kW
Output Frequency Range	from 0 to 300.0 Hz
Protection Level EN 60529	IP20
Cooling	Built-in fan

Frequency regulation of drive 750 W through SPLC-US-B-0R7G2

The inverter allows adjusting the motor speed of 0.7 kW using a set frequency, which can be adjusted by turning the potentiometer knobs, through the device menu, or by using PID control with feedback (for example, a pressure/level/temperature sensor connected to the inverter with an analog signal 0-5V).
