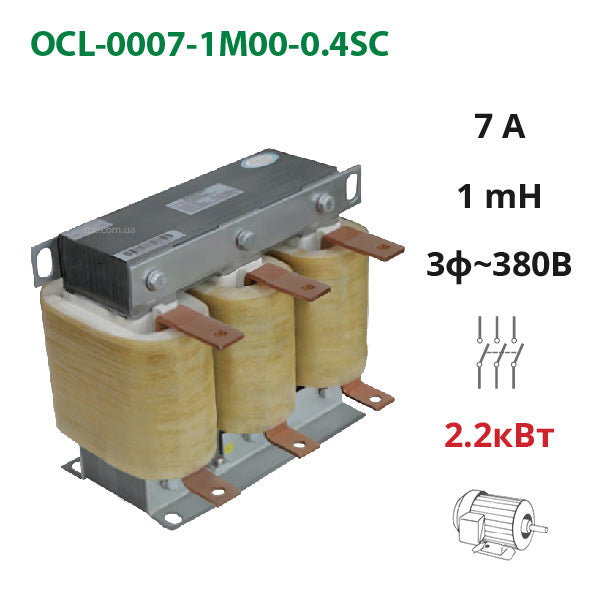

Motor (output) choke 7A, 380V, 2.2 kW, 1 mH (OCL-0007-1M00-0.4SC)
In Stock
Product Code:
SPLC-OCL-0007-1M00-0.4SC
Brand:
Specialist
4 110,78 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Three-phase motor reactor 7A, 380V, 2.2 kW, 1 mH OCL-0007-1M00-0.4SC is installed at the output of a frequency converter to filter the current supplied to three-phase electric motors 380V. The purpose of the output reactor is as follows:
- Creating inductive resistance to limit the motor's power supply current, thereby preventing overload and damage;
- Preventing sharp current surges during motor start-up, which can cause equipment failure;
- Cleaning the current sinusoid from undesirable high harmonics (high-frequency noise) arising in the electric drive.
Use the AC output reactor in the circuit between the inverter and the asynchronous motor to improve drive power quality and ensure safe and long-term equipment operation.
Technical specifications of the output motor reactor OCL-0007-1M00-0.4SC
| Operating Voltage | 3 phases 380 V |
|---|---|
| Voltage Drop | 1% for 380V (less than 4%) |
| Operating Frequency | 50/60 Hz |
| Operating Current | 7 A |
| Maximum Current | can exceed operational by no more than 150% for 60 s |
| Inductance | 1 mH |
| Insulation Class | F, H |
| Protection Class | IP00 - IP22 |
| Noise | ≤65 dB |
| Temperature Rise | ≤85 K |
| Dielectric Strength | AC 3000V/50Hz/5mA/10s |
| Insulation Resistance | 100 VDC, ≤100 MOhm |
| Ambient Operating Temperature | -25 ~ +45℃ |
Operating conditions of the motor reactor (line reactor) OCL-0007-1M00-0.4SC
- In the temperature range from minus 10 to 45℃, the rated parameters of the reactor are tabular. At temperatures above 55℃, the rated current decreases by approximately 2% with each additional +1℃.
- Altitude above sea level should not exceed 2000m.
- Air humidity less than 90%.
- Environment: free from harmful gases, flammable items, and with good ventilation.
If placing the reactor in a cabinet, ensure ventilation for adequate cooling of the equipment.
