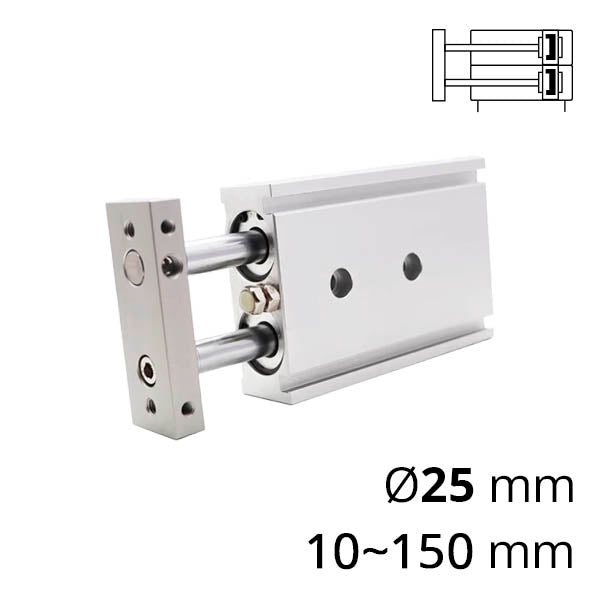

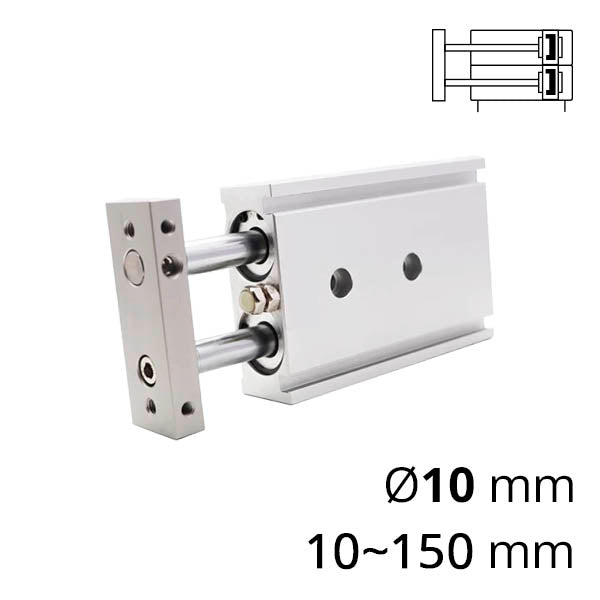

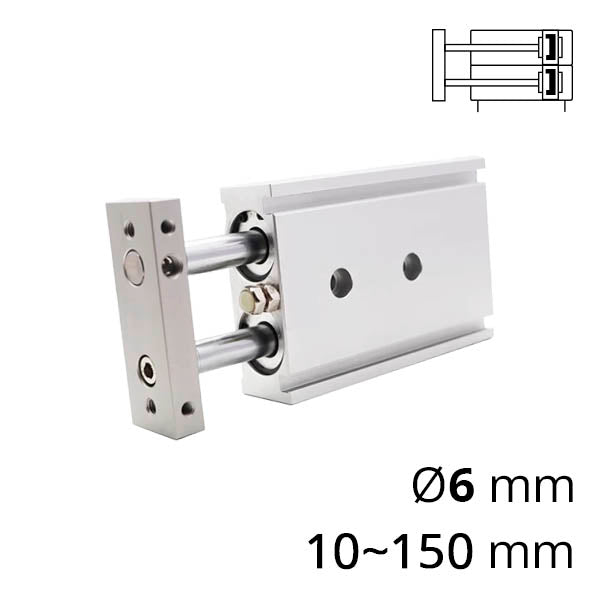

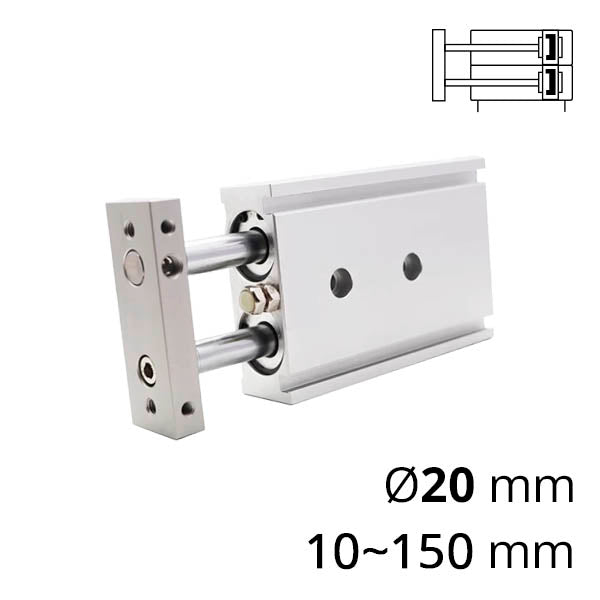

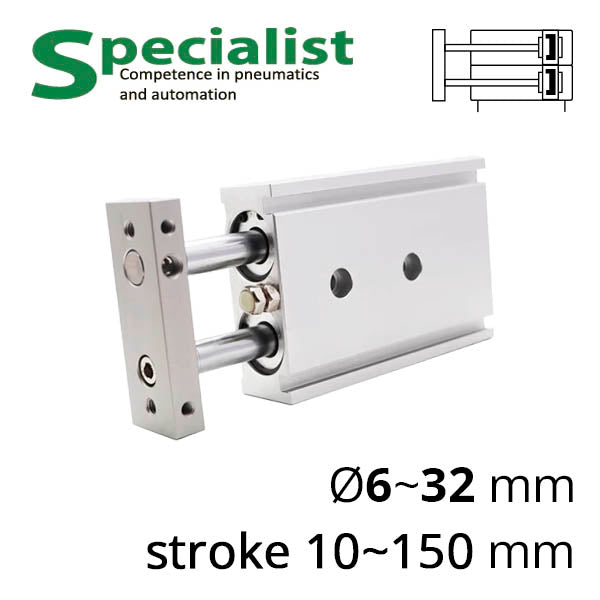

The SC-CXS dual rod pneumatic cylinder can be considered as two parallel installed double acting air cylinders with a common air supply inlet and outlet, allowing both rods to move simultaneously, and the generated forces are summed from the two pneumatic pistons. This design has an advantage over conventional cylinders with a single rod:
The SC-CXS series dual rod pneumatic cylinders are available in six sizes. Cylinders can be equipped with linear sliding and rolling guides.
| Piston Diameter, mm | 6 | 10 | 16 | 20 | 25 | 32 |
|---|---|---|---|---|---|---|
| Air Connection Thread | M5×0.8 | G1/8″ | ||||
| Action | Double Acting | |||||
| Working Medium | Air (after 40 μm filter) | |||||
| Operating Temperature Range | -10…50°C (with dry air without moisture) | |||||
| Max Working Pressure | 7 bar | |||||
| Min Working Pressure | 1.5 bar | 1.0 bar | 0.05 bar | |||
| Repeatability, Bushing | ±0.1 | ±0.15 | ±0.13 | ±0.11 | ±0.1 | ±0.08 |
| Repeatability, Bearing | ±0.1 | ±0.1 | ±0.07 | ±0.05 | ±0.05 | ±0.04 |
