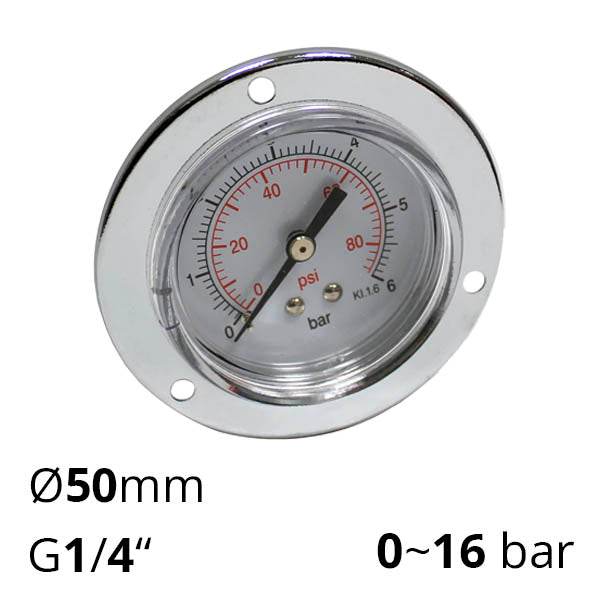

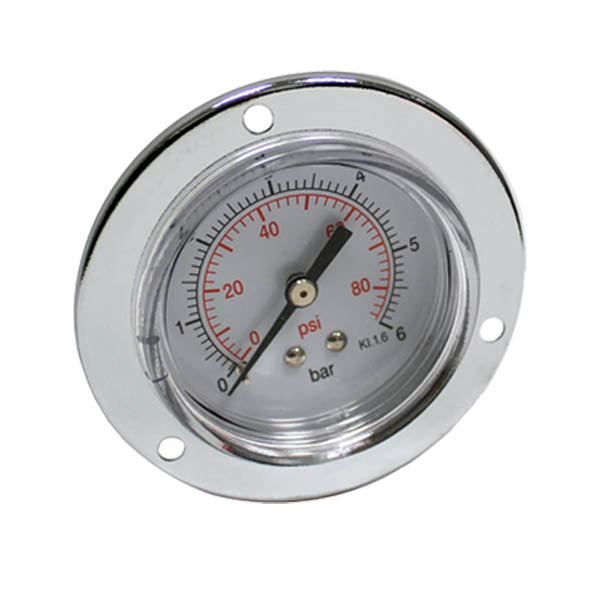

Mechanical flange pressure gauge with a diameter of 50 mm series SA-GF50-16 is designed to measure the pressure of compressed air or other non-aggressive gases. These gauges can measure pressure above atmospheric from 0 to 16 bar.
The gauges have an external conical thread PT 1/4″ and can be used to connect to a pneumatic line through fittings with an internal cylindrical pipe thread G1/4″ accordingly. Flange gauges type SA-GF50/63 are placed on operator panels, control cabinets, on compressor bodies, etc.
When choosing a gauge, its scale should be 25% larger than the working pressure range. That is, if you need to measure pressure in a pneumatic system with a working pressure of 10 bar, we recommend ordering a gauge for 0-16 bar.
It is structurally a deformation type gauge with a Bourdon tube.
