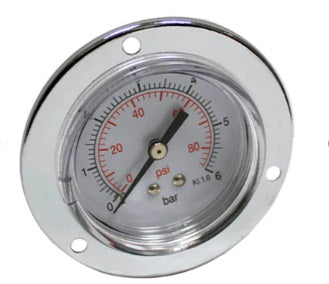

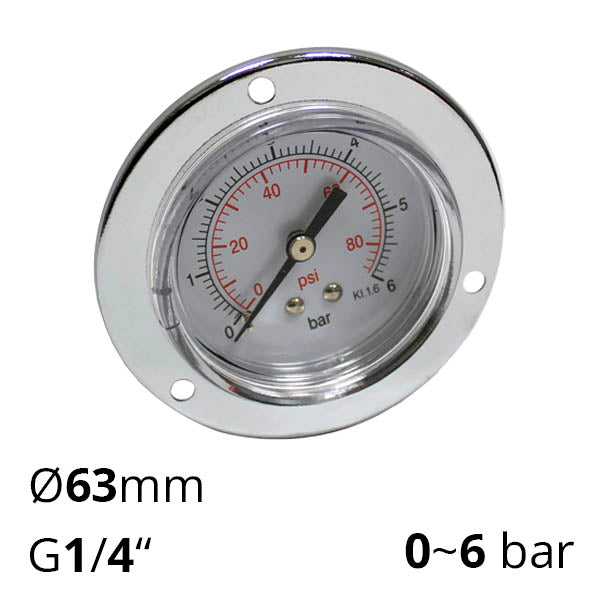

Flanged pneumatic pressure gauge with a diameter of 63 mm from the SA-GF63-06 series is designed to measure the pressure of compressed air or other non-aggressive gases. These gauges can measure pressure above atmospheric from 0 to 10 bar.
The gauges have an external tapered thread PT 1/4″ and can be used for connection to a pneumatic line via fittings with an internal cylindrical thread G1/4″ accordingly. Flanged gauges of the SA-GF50/63 type are placed on operator panels, control cabinets, compressor bodies, etc.
It is recommended to choose gauges with a scale at least 25% larger than the working pressure range. So, if you need to measure pressure in a pneumatic system at 7.5 bar, a gauge of 0-10 bar would be suitable.
Structurally, it is a deformation-type gauge with a Bourdon tube.
