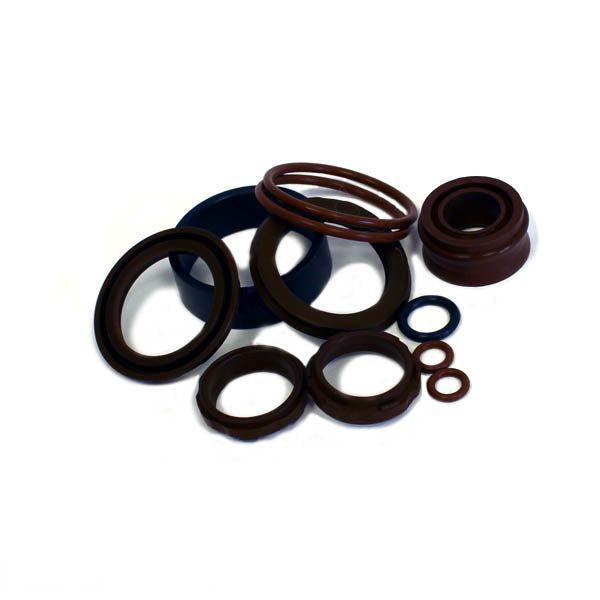

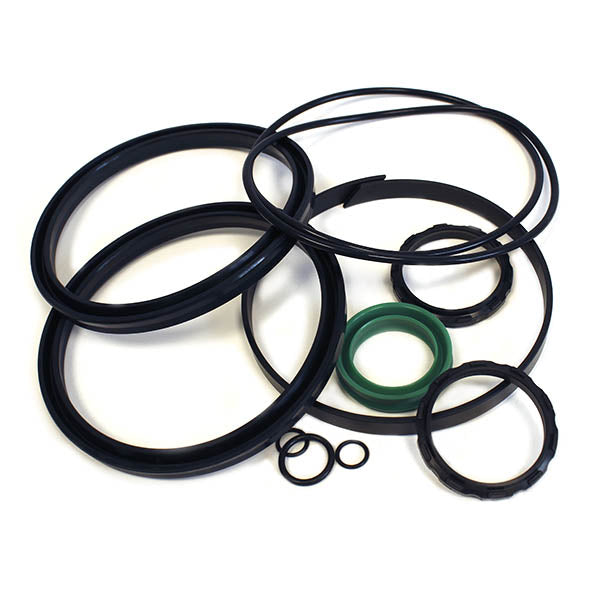

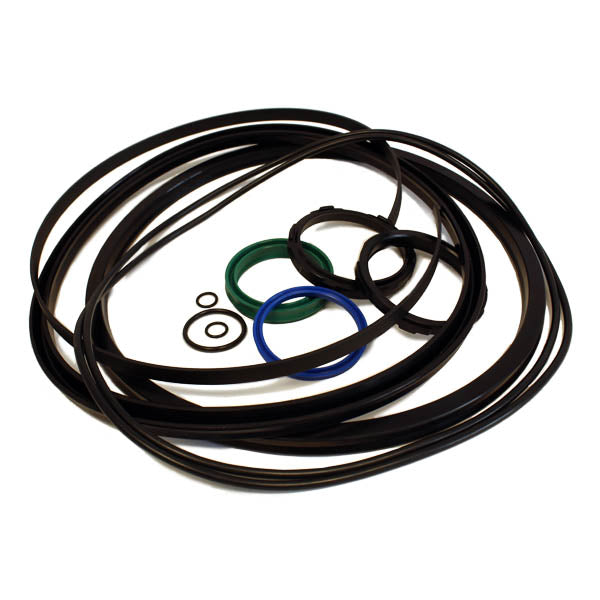

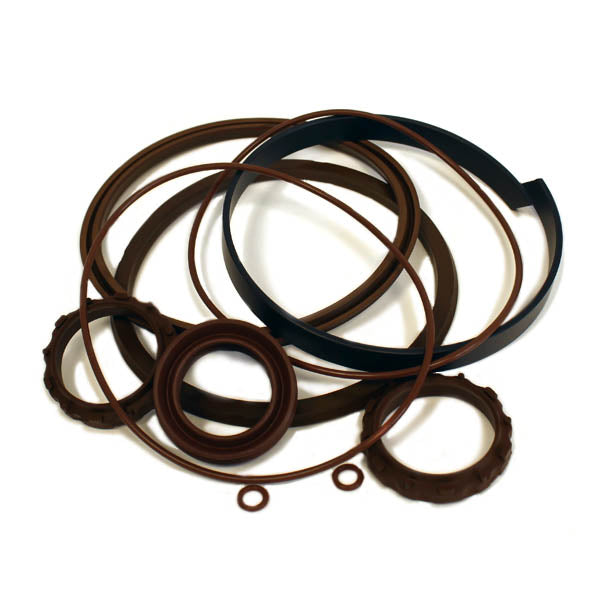

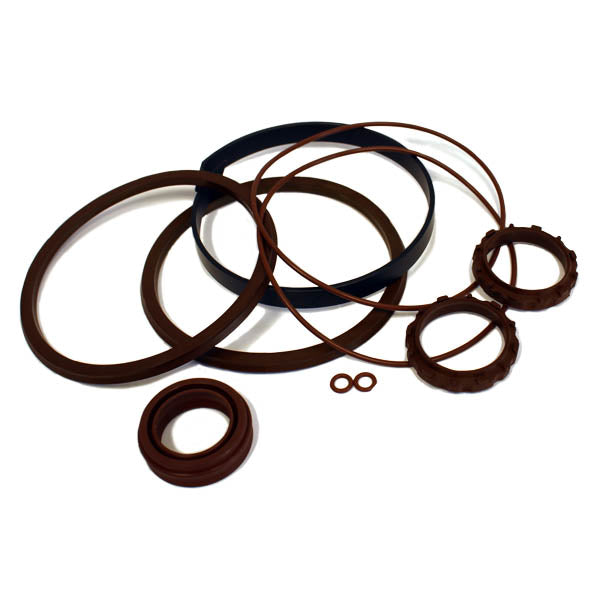

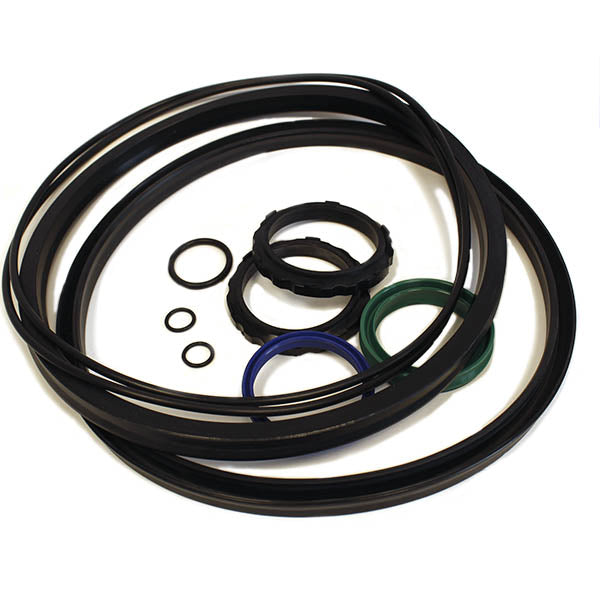

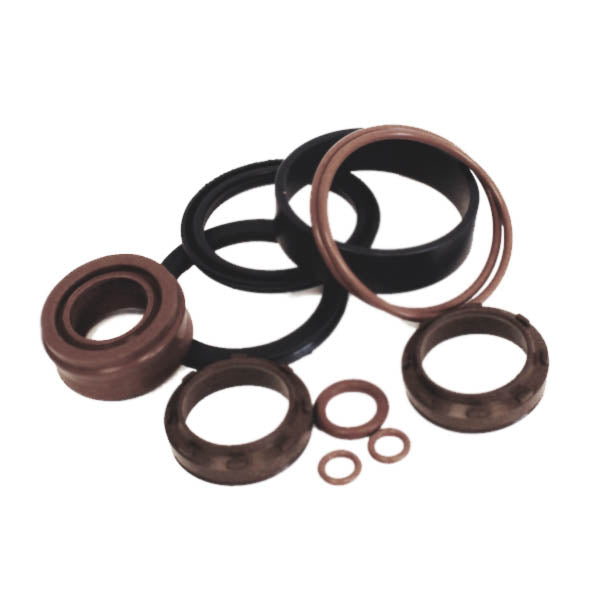

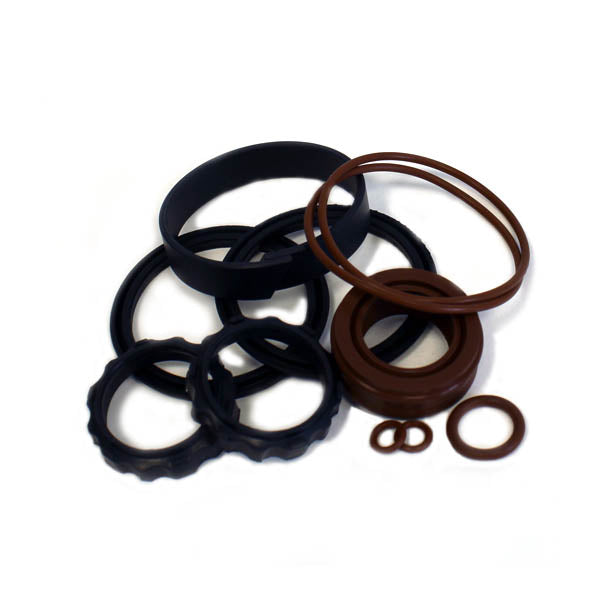

The seal repair kits are intended for repairing dismantlable pneumatic cylinders of the SC-DNG series, as well as the old SC-SE, and SC-SR series manufactured by "Specialist".
| Name | Material | Number | Code |
|---|---|---|---|
| Rod Seal Ring | NBR | 1 | — |
| Rod Packing | Polyurethane | 1 | SC-SE-Diameter-6 |
| Piston Packing | NBR | 2 | SC-SE-Diameter-7 |
| Antifriction Ring | PTFE | 1 | SC-SE-Diameter-11 |
| Seal Ring on the Cover | NBR | 2 | SC-SE-Diameter-12 |
| Rubber Shock Pads | NBR | 2 | SC-SE-Diameter-13 |
| Air Cushion Seal | NBR | 2 | — |
To choose rubber seals and packings, it is necessary to select the diameter of the pneumatic cylinder from 32 to 320 mm. For example, to order a seal repair kit for the pneumatic cylinder SC-SR-50×100-S, you need to choose a diameter of 50. The stroke does not matter when selecting packings.
By default, we sell rubber ring and packing kits made from NBR, but on request, we can supply seals made from VITON.
| Material | NBR (Nitrile Rubber) | Viton (Fluorocarbon Rubber) |
|---|---|---|
| Temperature | from -30 to +100°C | from -20 to +210°C At a temperature of -15°C Viton rubber hardens and becomes inflexible, which may lead to failure |
| Resistance | Resistant to water, petroleum oils, aliphatic hydrocarbons. Tear and abrasion resistance. | Wider range of resistance: to mineral acids, oxidation, ozone, petroleum-based oils, most fuels and lubricants, halogenated hydrocarbons, silicone fluids, and aromatic gases. Resistant to mould and mildew, UV radiation. |
| Price | Lower cost | More expensive than NBR |
You can order other spare parts for SC-DNG cylinders by calling the online store hotline.
