Scalar frequency converter 0.4 kW, 1F-3F 220V (SPLC-ESD-0R4G1)
On order
Product Code:
SPLC-ESD-0R4G1
Brand:
Specialist
3 193,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
⚠ Product available by order within 60 days

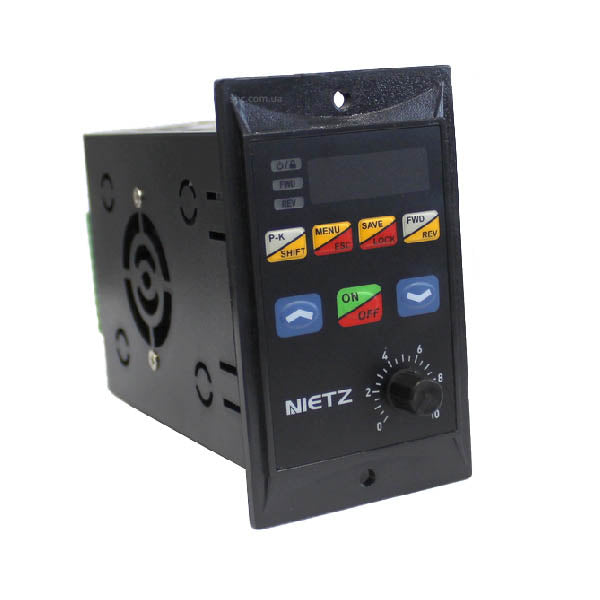

Economical scalar frequency converter 0.4 kW from the series NIETZ SPLC-ESD is designed to control fans, pumps, belt conveyors, and other control objects where three-phase asynchronous motors 220V with a power up to 400W are used. The SPLC-ESD-0R7G1 frequency converter is powered by a single-phase 220V network.
Unlike the similar NIETZ SPLC-ESD series, buying this frequency converter with scalar control will be cheaper because it:
- lacks an RS-485 interface,
- has a narrower output frequency range,
- has a higher nominal input-output current value.
This model can be used for motor control manually via a potentiometer knob, presetting from the keyboard, remote analog or discrete signals, for PID speed regulation of the motor using analog feedback 0…5 V, through setting up 7 speeds (multispeed mode).
| Input voltage | 1ph 220 V |
|---|---|
| Output voltage | 3ph 220 V |
| Output power | up to 0.25 kW |
| Output frequency range | from 0 to 300.0 Hz (for SPLC-ESD2) |
| Protection degree EN 60529 | IP20 |
Advantages of Low-Power ESD 0.4 kW Frequency Converter
The SPLC-ESD-0R25G1 frequency converter offers the best price by minimizing functions to solve the simplest tasks of controlling a low-power three-phase motor 220V.
| Frequency Converter Model | RS-485 | Power supply capacity kV⋅A | Input current, A | Output current, A | Adaptive motor, kW |
|---|---|---|---|---|---|
| SPLC-ESD-0R7G1 | - | 5.6 | 6 | 3.1 | 0.75 |
Before buying a scalar frequency converter
In our store you can find a wide range of scalar frequency converters for motors. Choose the model of converter and buy it with delivery to any city in Ukraine. To choose a converter, you need to determine its main characteristics, such as manufacturer, series, number of phases, etc. You can do this independently using the filters on the website or seek help from our specialists.
We invite you to consider our new series SPLC-US , which is an analogue of SPLC-ESD-0R4G1. Main differences: light casing, lighter weight due to a smaller cooling radiator, lower price.
