Thread
G 1, G 1/2, G 1/4
Do you have any questions about the product?
We will be happy to answer them in messengers

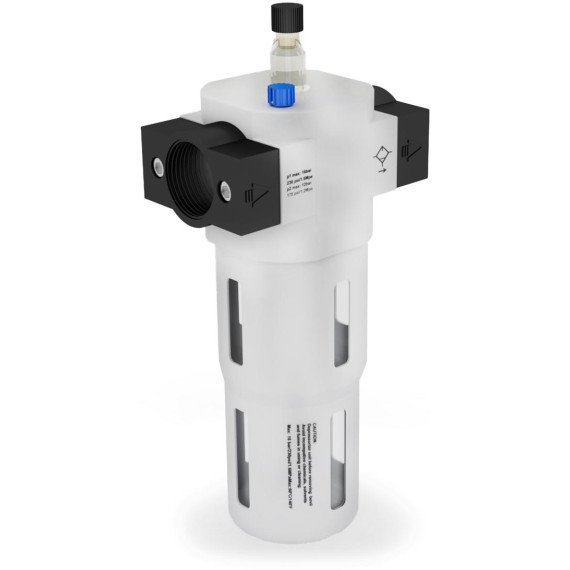

Lubricator up to 11500 l/min, M5~1″, 0~10 bar (SA-LN series)
In Stock
Irupation-exit thread
Model
SA-LN20-08
Manufacturer
Specialist
from 935,58 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 3 variants
Name
Model
Price
Availability
Qty
Action

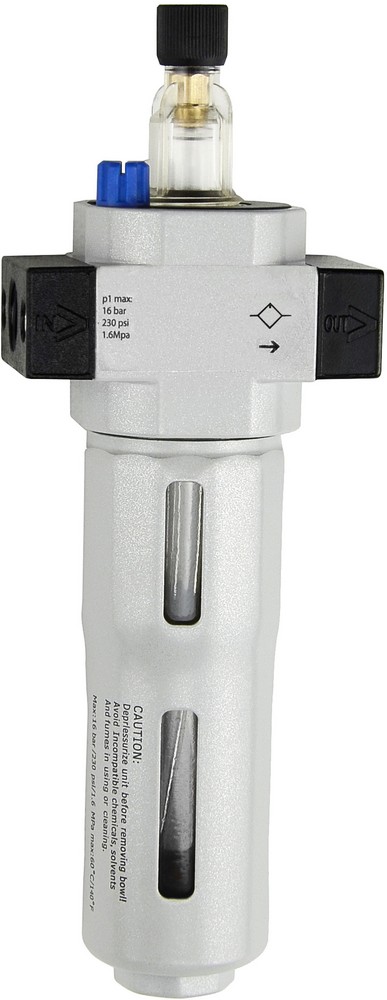

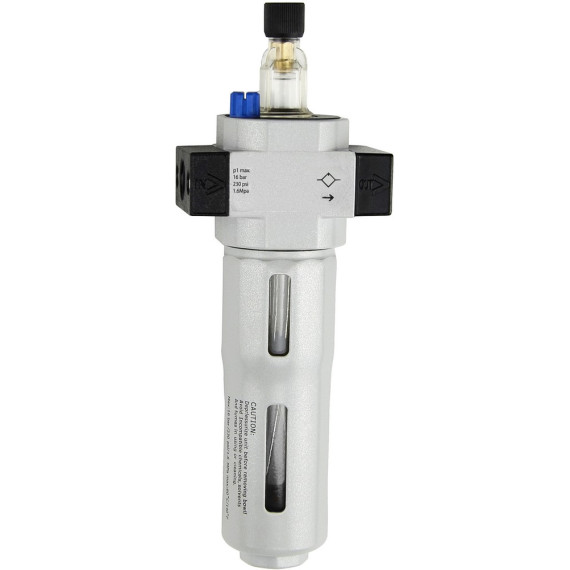

SA-LN20-08
Lubricator up to 11500 l/min, M5~1″, 0~10 bar (SA-LN series)
Irupation-exit thread=G 1/4
SA-LN20-08
935,00 UAH
In Stock

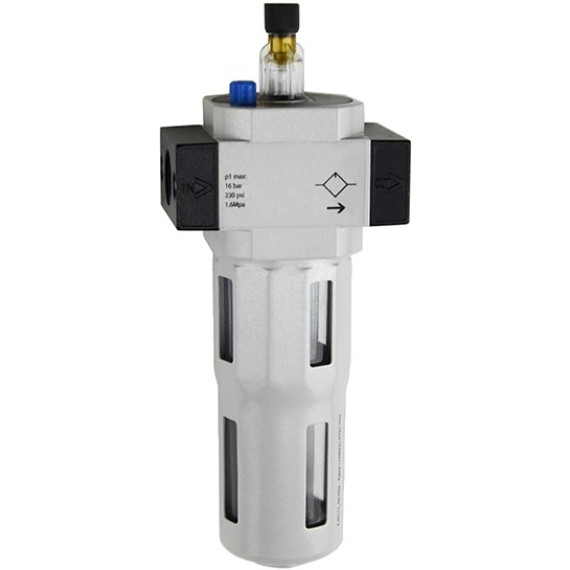

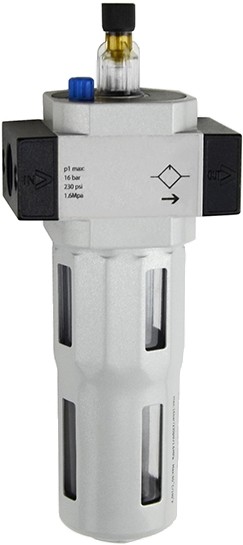

SA-LN40-15
Lubricator up to 11500 l/min, M5~1″, 0~10 bar (SA-LN series)
Irupation-exit thread=G 1/2
SA-LN40-15
1 742,00 UAH
In Stock

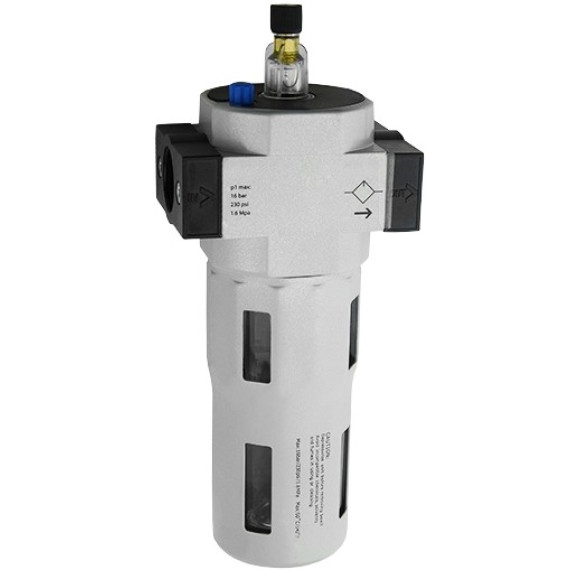

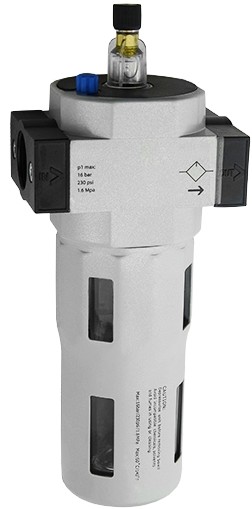

SA-LN60-25
Lubricator up to 11500 l/min, M5~1″, 0~10 bar (SA-LN series)
Irupation-exit thread=G 1
SA-LN60-25
2 452,00 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
Pneumatic lubricator in an aluminium body of the SA-LN series is designed for the regulated addition of atomised oil to compressed air, which is then supplied to pneumatic tools to lubricate friction elements. This air lubricator can be used on industrial equipment or tools where the pneumatic system pressure is 0-10 bar.
Delivery Package
- SA-LN series lubricator
- Mounting bracket for vertical surface installation
Advantages of SA-LN Pneumatic Lubricators
- The transparent plastic oil bowl has an additional aluminium shell for enhanced shock protection;
- The lubricator is integrated with other preparation block elements side-by-side without fittings, allowing for a functional and compact module with lubricators, pressure regulators SA-RN, filters SA-FN, filter regulators SA-WN, distribution blocks SA-DN. Using the distribution block SA-DN, you can obtain two air supply lines, with and without atomised oil, from one preparation block;
- Price-quality ratio for SA-LN lubricators.
Coding
| Model | SA-LN10-M5 | SA-LN10-06 | SA-LN20-06 | SA-LN20-08 | SA-LN20-10 | SA-LN40-10 | SA-LN40-15 | SA-LN40-20 | SA-LN60-20 | SA-LN60-25 |
|---|---|---|---|---|---|---|---|---|---|---|
| Connection Thread | M5 | G1/8″ | G1/8" | G1/4″ | G3/8″ | G3/8" | G1/2″ | G3/4″ | G3/4" | G1″ |
| Nominal Flow Rate (maximum) | 500 nl/min | 1700 nl/min | 3500 nl/min | 11500 nl/min | ||||||
| Presence of Protective Cup | No | Yes | ||||||||
| Protective Cup Material | Metal (standard) | |||||||||
| Operating Medium | Compressed air | |||||||||
| Operating Temperature | from 0 to +60°C (with dry air from -10°C) | |||||||||
| Recommended Oil | ISO VG32 | |||||||||
Additional Information
- Oil supply to the air is determined through a "by-eye" viewing window by the intensity of droplet fall, and by turning the throttle screw, the oil quantity can be decreased or increased;
- Select the lubricator size according to compressed air consumption; do not take a size "with reserve" — with too low air consumption, the device will not perform its function;
- In the air lubricator, only specialised "turbine" oil ISO VG32 recommended for pneumatic components is permitted;
- After the first oil supply to the equipment, it should not be left without oil as using low-viscosity oils 32 mm2/s washes away the initial "plastic" grease laid during production in cylinders, distributors, valves, and other pneumatic elements.
