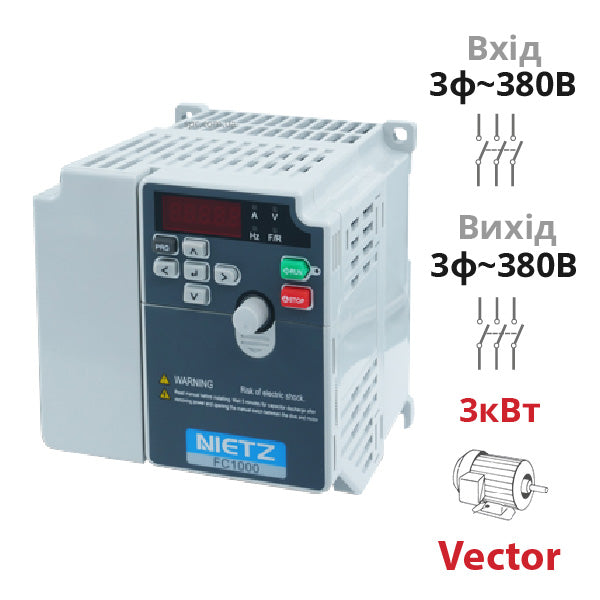

Reliable frequency converter with built-in EMC filter SPLC-FC1000-3R0G4 powered by a three-phase network 380 V and uses vector control for three-phase asynchronous motors with power up to 3 kW at a voltage 380 V. Additionally, with an installed extra card, this inverter can be connected to a machine with permanent magnets.
SPLC-FC1000-3R0G4 supports several operating modes:
-
Vector control without encoder in open loop provides precise vector control of the asynchronous motor 3 kW and maintains torque;
-
Vector control with encoder requires a PG card. Speed tracking allows enhanced speed accuracy and precise torque control of the asynchronous motor 3 kW. This mode supports synchronous motor operation up to 3 kW.
-
Scalar control V/F can be enabled for controlling asynchronous motors 3 kW with non-inertia loads (small pumps and fans).
Overview of the reliable frequency converter SPLC-FC1000-3R0G4:
- Mounting in protective cabinet on DIN rail;

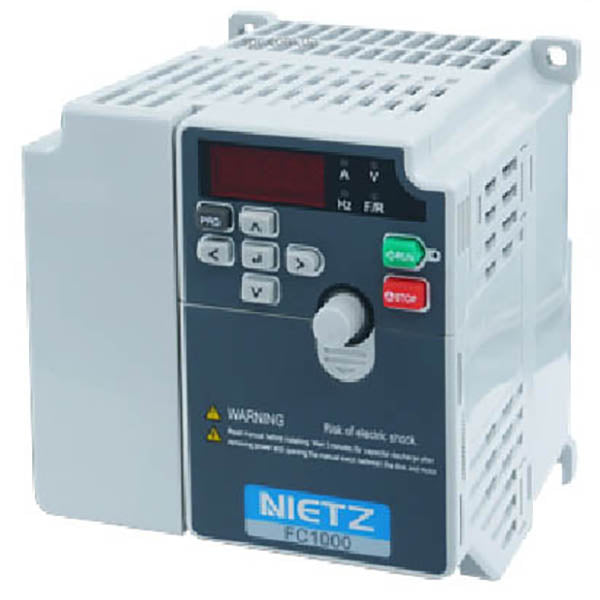

- Front panel features a 5-digit LED display and indicators to display settings and control parameters values. Convenient input buttons and a potentiometer knob to manually set the motor speed
- Ability to connect an external control panel with RJ45 interface;
- Power terminals are covered to prevent accidental contact. STO bridge (safe torque off) can be used as an additional safety measure for the motor — while the bridge is installed, the output of the frequency inverter is blocked. Grounding of the power circuit is available.
Table — Main technical specifications of SPLC-FC1000-3R0G4
| Input Voltage |
3-phase 380 V
|
| Output Voltage |
3-phase 380 V
|
| Output Power |
up to 3 kW
|
| Output Frequency Range in Vector Control |
from 0 to 600 Hz
|
|
| Output Frequency Range in V/F Control |
from 0 to 3200 Hz
|
|
| Rated Input Current |
8.5 A
|
| Rated Output Current |
7.2 A
|
| Protection Class EN 60529 |
IP20 |
Permissible overload in G mode (General) — 150% of rated current for no more than 60 s, 180% of rated current for no more than 3 s.

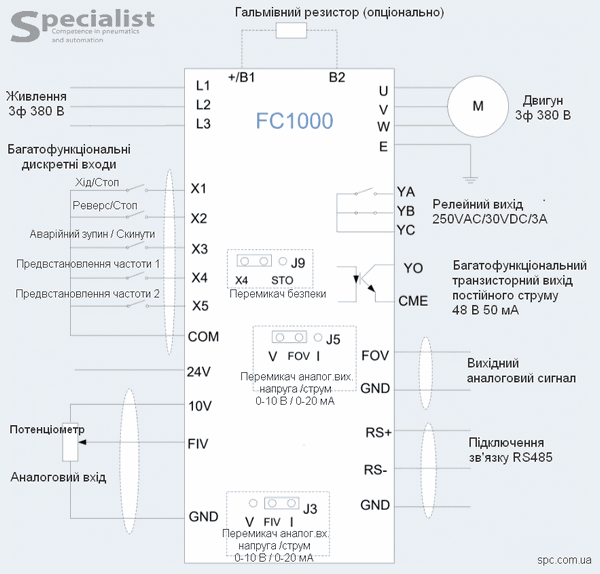

Connection Diagram SPLC-FC1000-3R0G4
Control circuit of the frequency inverter SPLC-FC1000-3R0G4:
- 5 digital inputs, the function of which can be assigned through the menu
- 1 analogue input 0…10 V or 0…20 mA (switched via terminal blocks J3)
- 1 relay output
- 1 transistor output, function assigned in the menu
- 1 analogue output 0…10 V or 0…20 mA (switch J5)
- RS485 communication. With optional expansion cards, interfaces EtherCAT, Profibus-DP, CAN can be installed.
On order
