Compressor suction valve 5.5 kW
In Stock
Product Code:
SCC-MC-INTAKE-VALVE
Brand:
Specialist
4 072,50 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

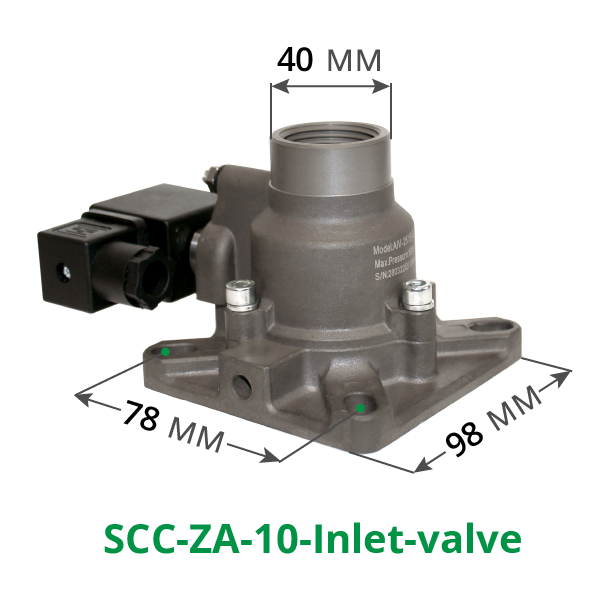

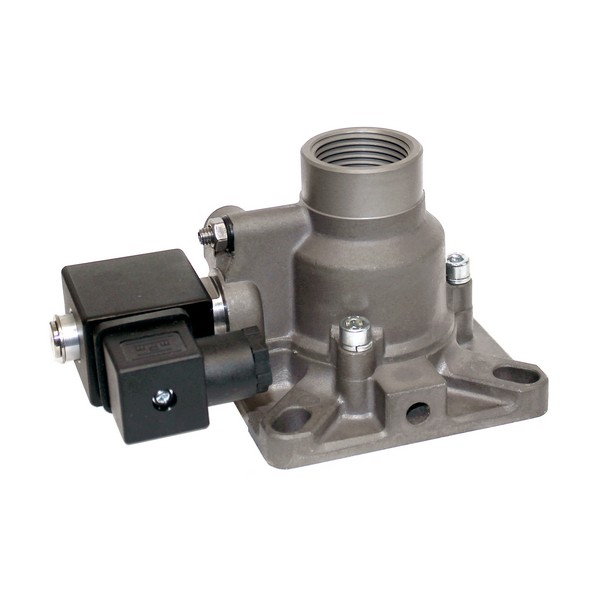

SCC-MC-INTAKE-VALVE is an electromagnetic compressor intake valve for screw type compressors. A snail (paper filter housing) is usually installed at the air intake with a diameter of Ø40 mm, and the base 98×98 mm is attached to the screw block. The distance between screws is 78 mm.
Set includes:
- intake valve
- solenoid AC220V 50/60 Hz 15 V⋅A
- sealing ring
The model SCC-MC-INTAKE-VALVE is an original spare part for Specialist screw compressors 5.5 kW, but can also be used for repairs on compressor units from Chinese and European manufacturers with up to 15 bar pressure and the same fittings, consuming 300~800 l/min.
