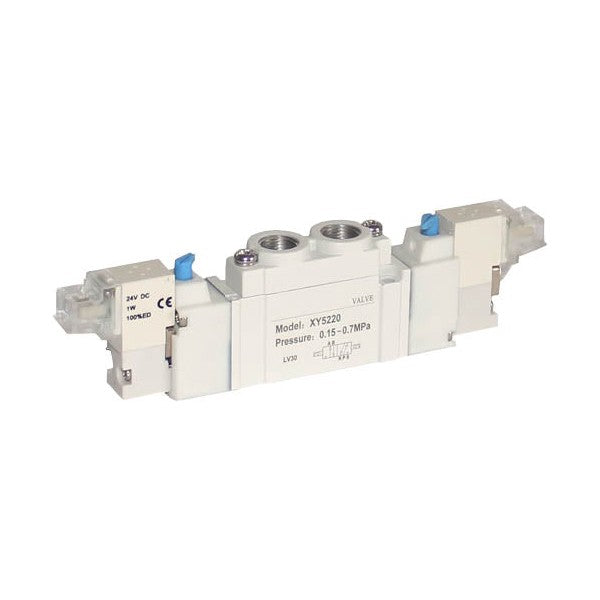

Pneumatic distributor 5/3 with electromagnetic control analog SMC SY5320
In Stock
Product Code:
SV-X50-EE-53C-06-DC24V
Brand:
Specialist
1 897,08 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

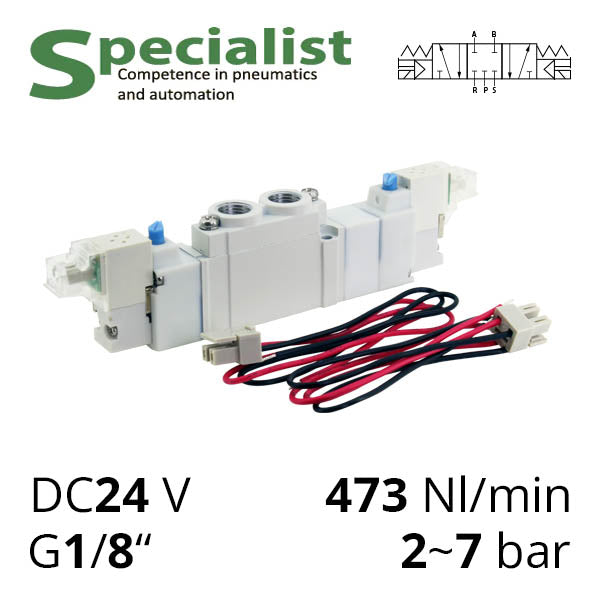

SV-X50/X70-EE-53C-DC24V is an analogue of the pneumatic distributor SMC SY5000 (SY5320) 5/3 with a closed centre and double electromagnetic control, featuring 2 wires with 2-pin connectors for 24V connection. The air connection ports have 1/8″ threading, and the nominal flow rate is up to 473 L/min.
A key feature of this electromagnetic pneumatic distributor model is its compactness and low energy consumption due to electro-pneumatic control (pilot valve with a low-power coil). SV-X50/X70-EE-53C-DC24V is suitable for building large pneumatic systems and group installation of devices onto a plate.
It withstands pressure from 2 to 7 bar. The five-line three-position pneumatic distributor is monostable. In the absence of a control signal (or simultaneous application to both coils), it closes all inputs and outputs until a new control signal is applied.
Marked connections for compressed air:
- P — inlet port for air supply
- A — first outlet
- R — pressure relief hole from the first inlet
- B — second outlet
- S — exhaust from the second inlet
