Special

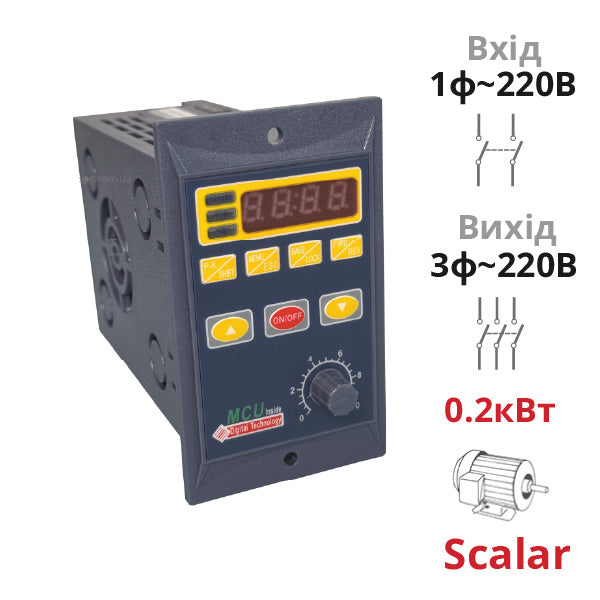

Scalar frequency converter 0.2 kW, 1F-3F 220V (SPLC-US-B-0R2G2)

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Scalar frequency converter 0.2 kW, 1F-3F 220V (SPLC-US-B-0R2G2)

Name: Scalar frequency converter 0.2 kW, 1F-3F 220V (SPLC-US-B-0R2G2)
Brand: Specialist
SKU: SPLC-US-B-0R2G2
Price: 1865.94 UAH
Availability: InStock

In Stock

Product Code:

SPLC-US-B-0R2G2

Brand:

Specialist

2 870,32 UAH

-34%

1 865,94 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar control

Output frequency

0.1 to 400 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

0.25 kW

Description

Scalar frequency converter for electric motor 0.2 kW (200 W) model SPLC-US-B-0R2G2 is an affordable low-power frequency inverter, suitable for controlling the rotation of small fans, pumps, speed of belt conveyors and other control objects where three-phase asynchronous motors 220V with a power up to 200W are used. For power supply, the frequency inverter SPLC-US-B-0R2G2 is connected to a household single-phase network of 220 Volts.

Table — Main Technical Specifications of Frequency Converter SPLC-US-B-0R2G2
Input Voltage	1Ph 220 V
Output Voltage	3Ph 220 V
Output Power	up to 0.25 kW
Output Frequency Range	from 0 to 300.0 Hz
Protection Degree EN 60529	IP20
Cooling	Built-in fan

Frequency Drive Regulation 200 W via SPLC-US-B-0R2G2

The frequency inverter allows regulating the motor speed 0.2 kW by setting a frequency that can be adjusted through potentiometer knobs, device menu, or via PID regulation with feedback (for example, a pressure/level/temperature sensor connected to the inverter with an analog signal 0-5V.
