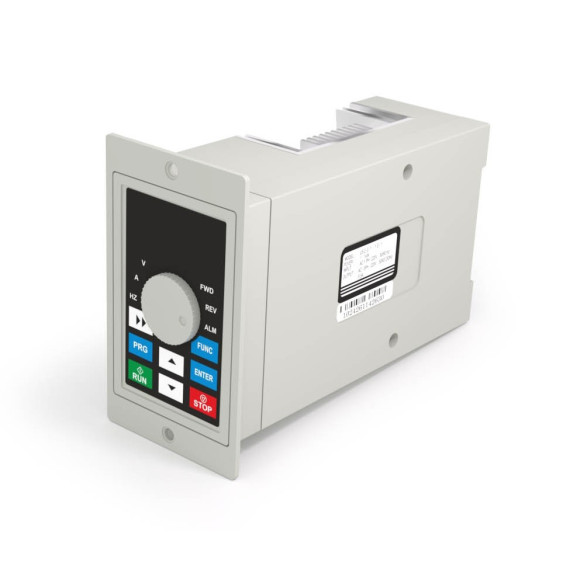

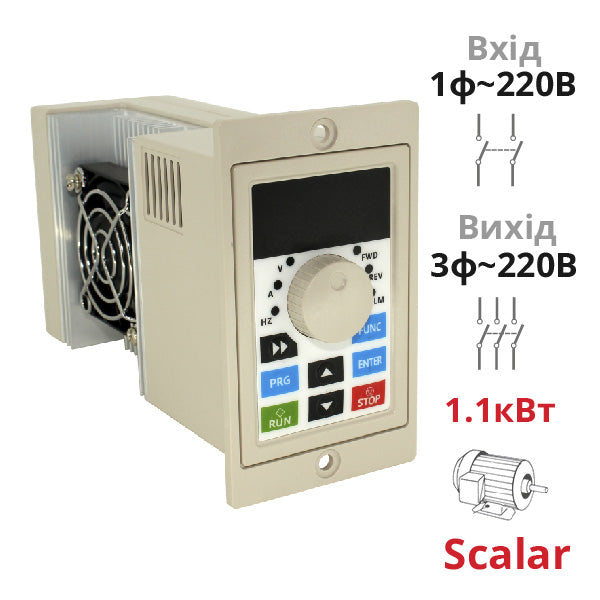

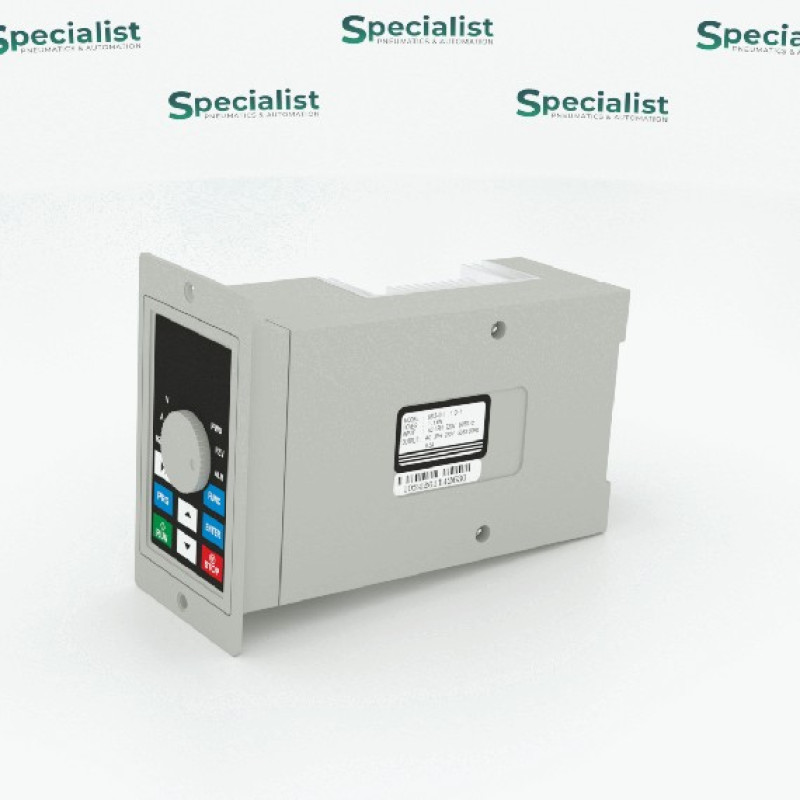

Scalar frequency converter 1.1 kW, 1F-3F 220V (SPLC-US-2-1R1G2)

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Scalar frequency converter 1.1 kW, 1F-3F 220V (SPLC-US-2-1R1G2)

Name: Scalar frequency converter 1.1 kW, 1F-3F 220V (SPLC-US-2-1R1G2)
Brand: Specialist
SKU: SPLC-US-2-1R1G2
Price: 2874.42 UAH
Availability: InStock

In Stock

Product Code:

SPLC-US-2-1R1G2

Brand:

Specialist

4 422,22 UAH

-35%

2 874,42 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar control

Output frequency

0.0 to 300 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

1.1 kW

Description

Scalar frequency converter on electric motor 1.1 kW (1100 W) model SPLC-US-2-1R1G2 is an affordable low-power frequency converter, suitable for controlling the speed of small fans, pumps, belt conveyor speeds and other control objects where three-phase asynchronous motors 220V with a capacity of up to 750W are used. The frequency converter SPLC-US-2-1R1G2 is connected to a single-phase household network 220 Volts. The frequency inverter has an RS-485 interface.

Table — Main technical specifications of frequency converter SPLC-US-2-1R1G2
Input Voltage	1P 220 V
Output Voltage	3P 220 V
Output Power	up to 1.1 kW
Output Current	up to 5.5 A
Output Frequency Range	from 0 to 300.0 Hz
Protection Rating EN 60529	IP20
Cooling	Built-in fan

Frequency Regulation of Drive 1100 W via SPLC-US-2-1R1G2

The frequency converter allows regulation of motor speed 1.1 kW using a set frequency, which can be adjusted by turning potentiometer knobs, via the device menu or through PID regulation with feedback (e.g., connecting a pressure/level/temperature sensor with an analogue signal 0-5V to the inverter).
