Vector frequency converter 0.4 kW, 1F-3F 220V (SPLC-KD100-2S-0.4G)

Name: Vector frequency converter 0.4 kW, 1F-3F 220V (SPLC-KD100-2S-0.4G)
Brand: Specialist
SKU: SPLC-KD100-2S-0.4G
Price: 4669.98 UAH
Availability: BackOrder

On order

Product Code:

SPLC-KD100-2S-0.4G

Brand:

Specialist

4 671,00 UAH

4 669,98 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar and vector control

Output frequency

0 to 600 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

0.4 kW

Description

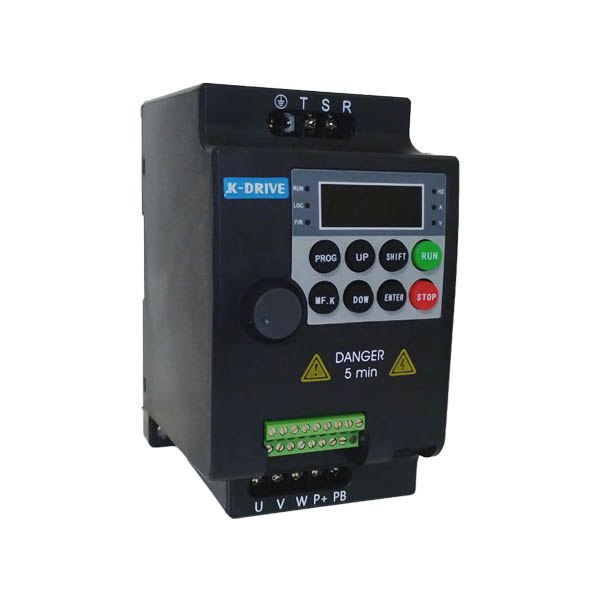

Compact vector frequency converter 0.4 kW 220 Volt with effective braking of the SPLC-KD100-2S-0.4G series is powered from a single-phase input voltage of 220 V and is designed for regulating the speed of three-phase asynchronous motors 220 V. This frequency inverter can switch between modes and control motors in an easy-to-configure voltage-frequency mode or maintain precise vector speed control with a deviation less than 0.2%. When purchasing a PG expansion board, the device can also precisely control the torque. Feature of low-power frequency converters SPLC-KD100-2S-0.4G — ability to connect an external braking resistor.

Table — Technical Specifications of Frequency Inverters SPLC-KD100-2S-0.4G
Input Voltage	1ph 220 V
Output Voltage	3ph 220 V
Output Power	0.4 kW
Output Frequency Range	from 0 to 600.0 Hz
Protection Degree EN 60529	IP20

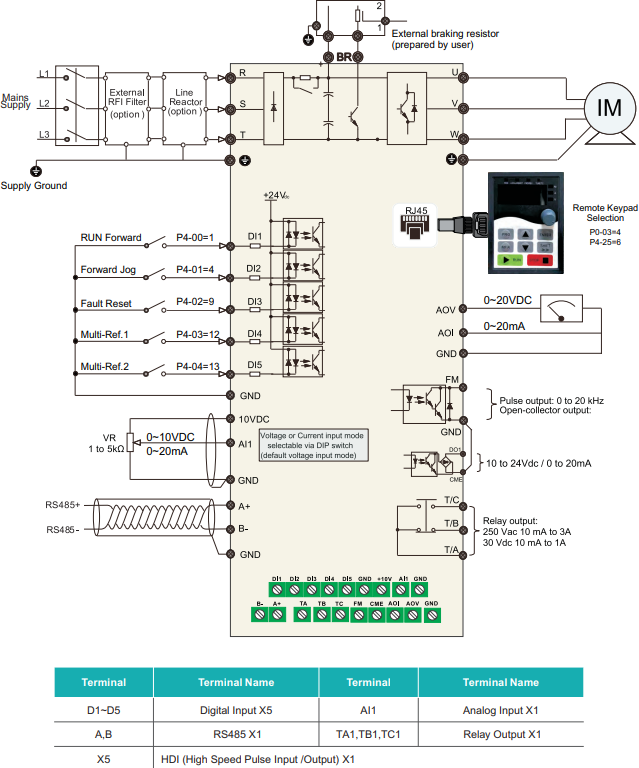

Functions of the frequency inverter SPLC-KD100-2S-0.4G:

Configurable inputs and outputs:
- 5 discrete inputs
- 1 analogue input for potentiometer (jumper setting for current or voltage input)
- 1 analogue output 0…20 mA or 0…20 V DC
- 1 high-speed pulse output 0…20 kHz (open collector)
- 1 relay output
RS485 Communication Port (Modbus)
Built-in braking unit (manufacturer recommends 250 Ohm and 100 W resistor). Acceleration and deceleration time up to 999 s, linear and S-curve profiles
PID control functions, time control, duration counter
Increase startup torque up to 30%
Supports overload 150% of rated current no more than 60 s
