Vector frequency converter 5.5 kW, 1F-3F 220V (SPLC-HS320-5R5G2)

Do you have any questions about the product?
We will be happy to answer them in messengers

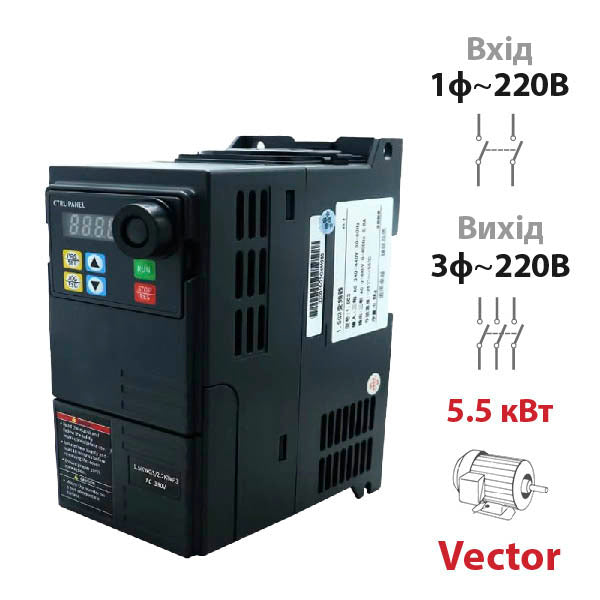

Vector frequency converter 5.5 kW, 1F-3F 220V (SPLC-HS320-5R5G2)

Name: Vector frequency converter 5.5 kW, 1F-3F 220V (SPLC-HS320-5R5G2)
Brand: Specialist
SKU: SPLC-HS320-5R5G2
Price: 11774.82 UAH
Availability: InStock

In Stock

Product Code:

SPLC-HS320-5R5G2

Brand:

Specialist

15 699,39 UAH

-24%

11 774,82 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar and vector control

Output frequency

0 to 400 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

5.5 kW

Description

Low-power vector frequency converter 5500 W 220 Volt SPLC-HS320-5R5G2 of the HS320 series should be powered by a household grid 220V and controls a three-phase asynchronous motor 220 V with a power of up to 5.5 kW with a rated current not exceeding 20 Amperes. These 5.5 kW frequency converters are used to control the speed of rotation of various machines. They can work with a water pump, machine tool drive, CNC, and other loads where it is necessary to maintain torque across a wide range of motor speeds with low and infrequent overloads.

The frequency inverter SPLC-HS320-5R5G2 at 5.5kw has a removable control panel. This allows the standalone device to be placed in a panel with one frequency converter and its control panel to be put on the front panel.

Table — Main technical specifications of the frequency inverter 220V SPLC-HS320-5R5G2
Input Voltage	1ph 220 V
Output Voltage	3ph 220 V
Output Current	20 A
Output Power	5.5 kW
Output Frequency Range	from 0 to 400.0 Hz
Protection Degree EN 60529	IP20
