Vector frequency converter 11 kW, 3F-3F 380V (SPLC-HS320-11R0G4)

Do you have any questions about the product?
We will be happy to answer them in messengers

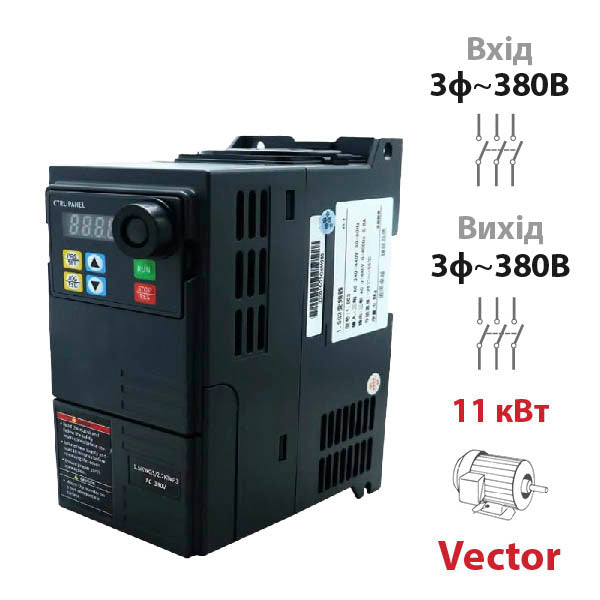

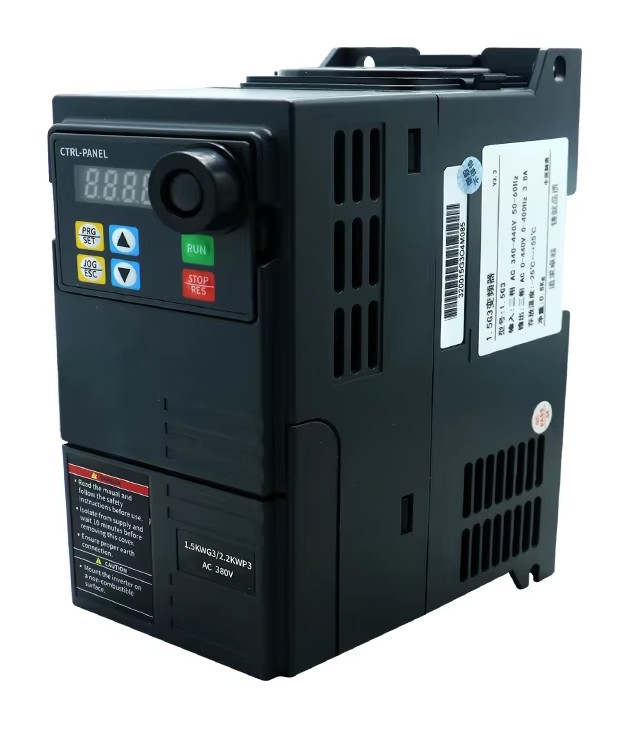

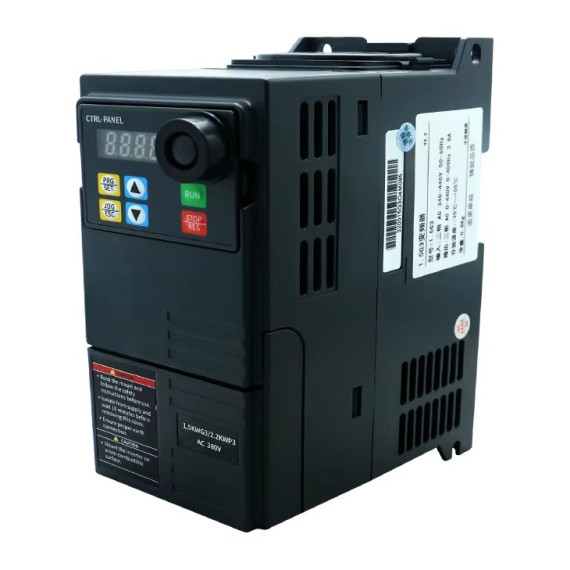

Vector frequency converter 11 kW, 3F-3F 380V (SPLC-HS320-11R0G4)

Name: Vector frequency converter 11 kW, 3F-3F 380V (SPLC-HS320-11R0G4)
Brand: Specialist
SKU: SPLC-HS320-11R0G4
Price: 19145.16 UAH
Availability: InStock

In Stock

Product Code:

SPLC-HS320-11R0G4

Brand:

Specialist

25 526,86 UAH

-24%

19 145,16 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar and vector control

Output frequency

0 to 400 Hz

Output voltage

3ph 380V

Supply voltage

3ph 380V

Power

11 kW

Description

Vector frequency inverter 3-phase SPLC-HS320-11R0G4 series HS320 is designed for autonomous control of the speed of a low-power three-phase asynchronous motor — 380 V, up to 25 A, up to 11 kW (11000 W). The vector mode of operation allows this frequency and voltage inverter to be used for almost any type of pump, conveyor belts, and machines.

Model SPLC-HS320-11R0G4 has an IP20 enclosure designed for DIN-rail mounting in a motor control cabinet (IP56) to protect against dust and moisture. The detachable control panel, located on the front panel of the cabinet, facilitates the settings of the inverter.

Table — Main technical parameters of the 11000w model SPLC-HS320-11R0G4
Input Voltage	3PH 380 Volts
Output Voltage	3PH 380 V
Output Current	25 Amps
Output Power	11 kW
Output Frequency Range	from 0 to 400.0 Hz
Protection Level EN 60529	IP20

Features of SPLC-HS320-11R0G4

This is the most affordable vector frequency converter at 11 kW. It supports all necessary functions, but compared to other series, it has a smaller memory volume: 7 preset values for multi-speed program or step-by-step instruction; time range settings up to 999.9 s (~17 min), absence of RS-485.

One advantage of the SPLC-HS320-11R0G4 inverter is higher carrier frequency — from 2 to 16 kHz (can be adjusted). This allows for better electromagnetic compatibility, increasing carrier frequency for quieter drive operation.
