Corner pneumatic fitting with collet SF-IPV

Do you have any questions about the product?
We will be happy to answer them in messengers

Corner pneumatic fitting with collet SF-IPV

Name: Corner pneumatic fitting with collet SF-IPV
Brand: Specialist
SKU: SF-IPV 4
Price: 18.18 UAH
Availability: InStock

In Stock

Zanga diameter

4 mm 6 mm 8 mm 10 mm 12 mm

Model

SF-IPV 4

Manufacturer

Specialist

from 13,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 5 variants


Name

Model Price Availability Qty

Action

SF-IPV 4

Corner pneumatic fitting with collet SF-IPV

Zanga diameter=4 mm

SF-IPV 4

18,18 UAH

In Stock

SF-IPV 6

Corner pneumatic fitting with collet SF-IPV

Zanga diameter=6 mm

SF-IPV 6

13,02 UAH

In Stock

SF-IPV 8

Corner pneumatic fitting with collet SF-IPV

Zanga diameter=8 mm

SF-IPV 8

15,60 UAH

In Stock

SF-IPV 10

Corner pneumatic fitting with collet SF-IPV

Zanga diameter=10 mm

SF-IPV 10

23,40 UAH

In Stock

SF-IPV 12

Corner pneumatic fitting with collet SF-IPV

Zanga diameter=12 mm

SF-IPV 12

31,20 UAH

In Stock

Technical specifications

Tube O.D.

4 mm, 6 mm, 8 mm, 10 mm, 12 mm

Connection type

Collet fitting

Body material

Plastic

Variations

The connector is straight through

Fitting type

Angular 90°

Description

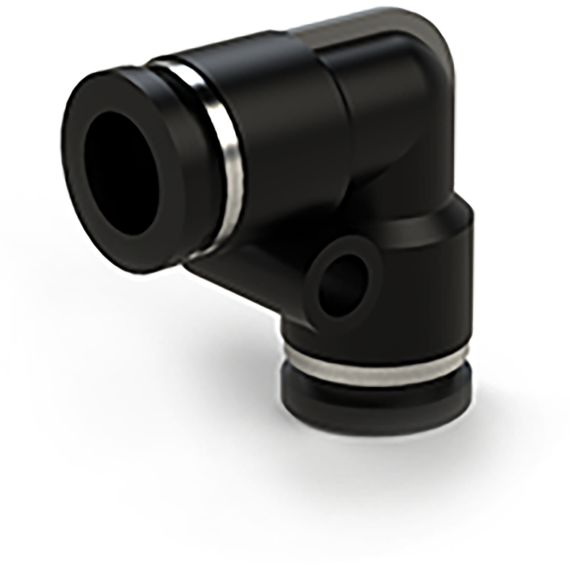

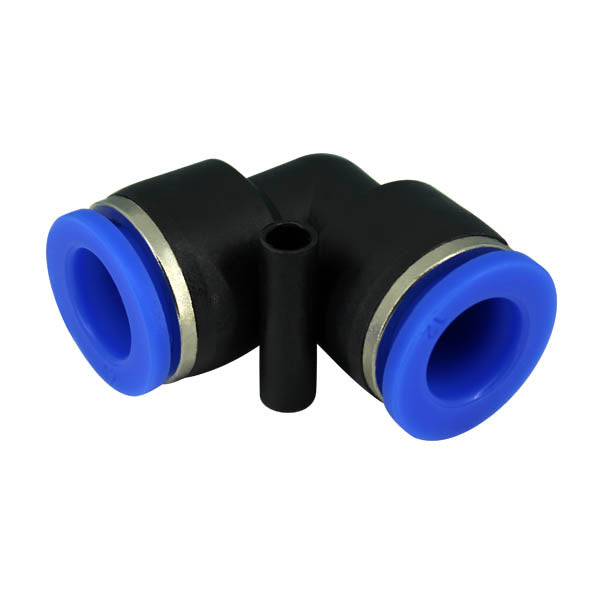

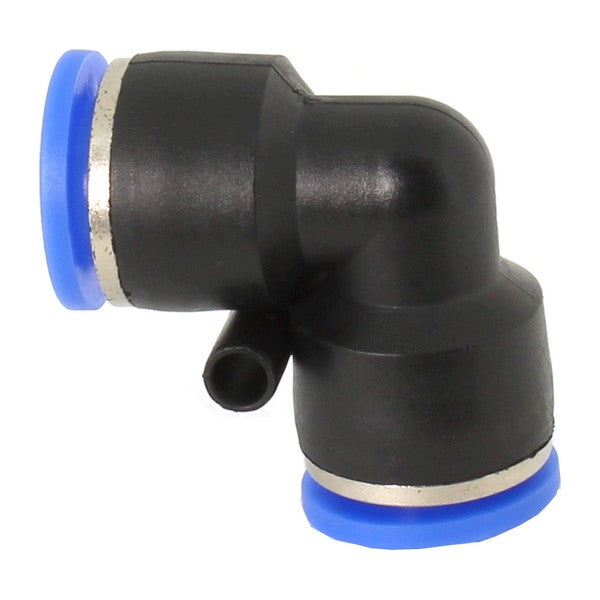

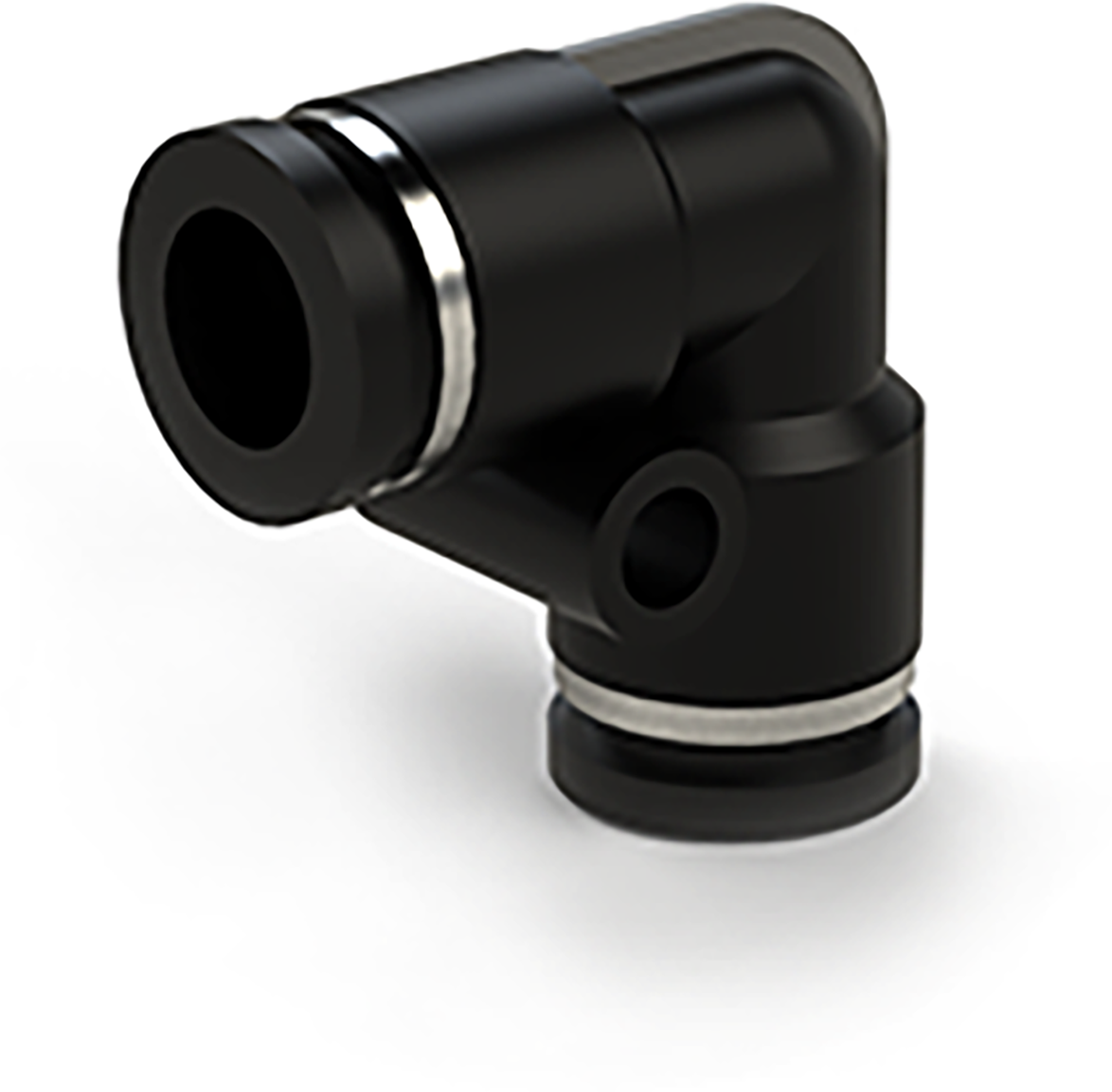

The SF-IPV fitting is a black elbow plastic fitting with a collet clamp, which provides a reusable 90° connection of two passing tubes 4, 6, 8, 10 or 12 mm, through which air under high pressure up to 10 bar or water, other fluids and gases compatible with the material will pass.

Collet pneumatic connections are becoming increasingly popular because they do not deform the end of the connected pneumatic tube, are easy to use, and reliable enough to ensure airtightness at air pressure up to 10 atmospheres, at which most general industrial pneumatics operate. These L-shaped fittings are an excellent choice if you need to connect two sections of flexible hose of the same diameter at an angle of 90 degrees. We also offer our own production organisers (tube holders) to organise pipelines.
