Specialist compressors of the SCC-ZAY-20 series are a ready-made assembly of an oil-injected screw compressor for stationary installation. Designed to deliver high air pressure — 7 to 10 bar (by default), up to 12 bar — upon request.

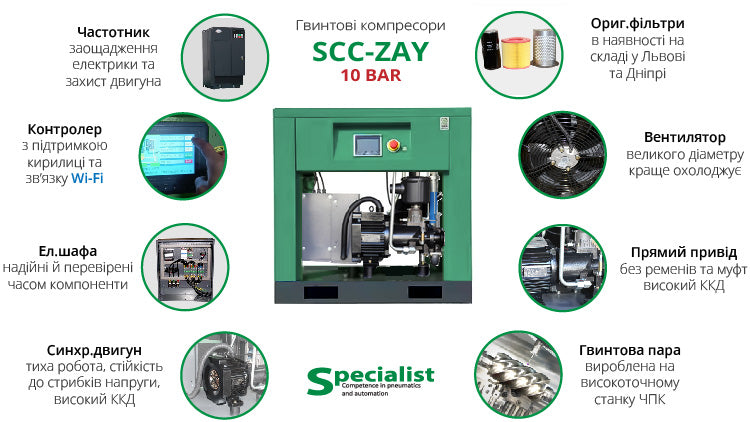

The compressor is controlled through a touch screen controller that supports Cyrillic. Through Wi-Fi connectivity, you can view compressor parameters and receive filter replacement notifications on a mobile device or computer. The housing has a dust and moisture protection rating of IP23.
A feature of this series is the presence of an integrated frequency converter to adjust not only the delivery pressure but also the compressor's capacity. This saves energy and increases the compressor's service life.
When selecting a model, consider that the performance of any compressor depends on the outlet air pressure. Use the table to purchase the SCC-ZAY-20 screw compressor with the required power capacity.
| Model | SCC-ZAY-20 | ||
|---|---|---|---|
| Power, kW | 15 | ||
| Performance (at specified delivery pressure) | 0.7 MPa | 2.4 m3/min | 2400 l/min |
| 0.8 MPa | 2.2 m3/min | 2200 l/min | |
| 1.0 MPa | 2.0 m3/min | 2000 l/min | |
| 1.2 MPa* | 1.7 m3/min* | 1700 l/min* | |
The single-stage compressor consists of the following main components:
Compared to similar products on the Ukrainian market, Specialist industrial screw compressors are built with quality and durable components. We have filters and spare parts available for post-warranty service.

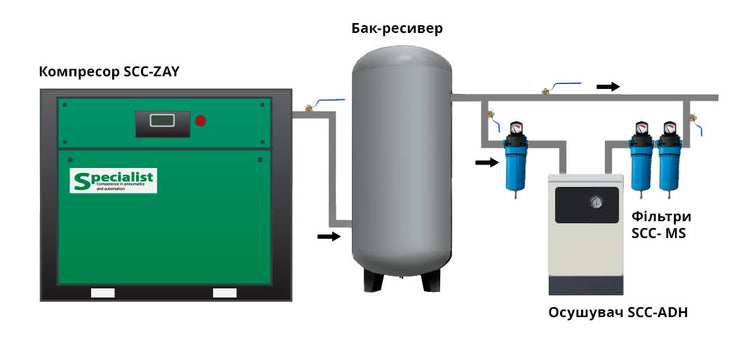

We supply SCC-ZAY-20 series screw compressors that are ready for connection and operation. The compressor must be connected to a three-phase AC power network with a voltage of 380 V and a frequency of 50 Hz. To the air duct — using a pipe with a cylindrical thread (size depends on the model).
More detailed installation requirements (room ventilation, distances to walls) are provided in the instructions.
Some SCC-ZAY compressor models are available in stock at "Specialist" in Ukraine, while others are offered for delivery upon order within 60 days. Our company also supplies both individual compressors and complete equipment sets for working with compressed air — receivers, dryers, filters, pressure boosters, valves, regulators, distributors, cylinders, and more.
Call us to receive a commercial offer with pricing and a detailed presentation of the equipment we can offer at your request.
