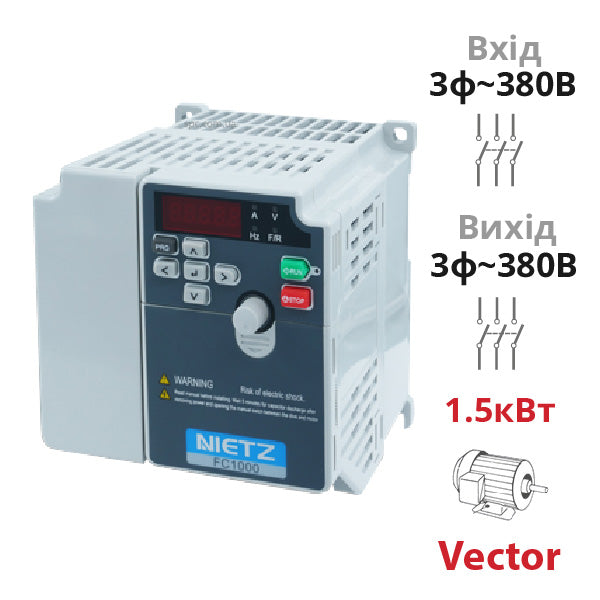

Reliable frequency inverter with built-in EMC filter SPLC-FC1000-1R5G4 is powered by a three-phase network of 380 V and uses vector control of three-phase asynchronous motors with power up to 1.5 kW and a voltage of 380 V. An additional card enables operation with permanent magnet machines.
SPLC-FC1000-1R5G4 supports several operating modes:
-
Sensorless vector control in open-loop provides precise vector current control of an asynchronous electric motor 1.5 kW and maintains torque;
-
Vector control with encoder requires PG card installation. Speed tracking enhances speed control accuracy and allows precise control of the torque of an asynchronous electric motor 1.5 kW. This mode enables work with synchronous motors up to 1.5 kW.
-
Scalar control V/F can be activated for controlling asynchronous machines 1.5 kW with non-inertial loads (small pumps and fans).
Overview of the reliable frequency inverter SPLC-FC1000-1R5G4:
- Mounting in a protective cabinet on DIN rail;
- The front panel features a 5-character LED display and indicators for settings and parameter values. Convenient input buttons and a potentiometer knob for manual setting of motor rotation frequency
- Option to connect an external control panel via RJ45 interface;
- Power terminals are covered to provide protection against accidental contact. STO jumper (Safe Torque Off) can be used as additional motor safety measure — while the jumper is installed, the frequency inverter output is blocked. Grounding of the power circuit is present.
Table — Main Technical Specifications of the SPLC-FC1000-1R5G4 Inverter
| Input Voltage |
3ph 380 V
|
| Output Voltage |
3ph 380 V
|
| Output Power |
up to 1.5 kW
|
| Output Frequency Range in Vector Control |
from 0 to 600 Hz
|
|
| Output Frequency Range in V/F Control |
from 0 to 3200 Hz
|
|
| Nominal Input Current |
5.0 A
|
| Nominal Output Current |
3.8 A
|
| Protection Class EN 60529 |
IP20 |
Permissible overload in mode G (General) — 150% of the nominal current for no more than 60 s, 180% of the nominal current for no more than 3 s.

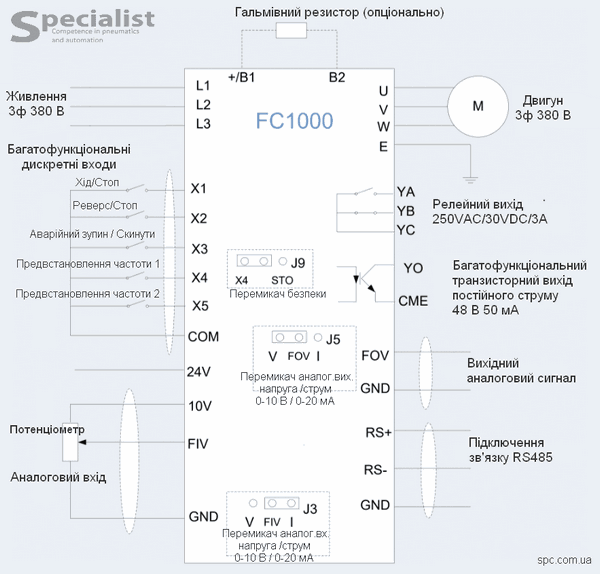

Connection Diagram SPLC-FC1000-1R5G4
Control Circuit of the Frequency Inverter SPLC-FC1000-1R5G4:
- 5 digital inputs, configurable through menu
- 1 analogue input 0…10 V or 0…20 mA (switchable via terminal J3)
- 1 relay output
- 1 transistor output, function assignable in menu
- 1 analogue output 0…10 V or 0…20 mA (switch J5)
- RS485 communication. With additional extension cards, EtherCAT, Profibus-DP, CAN interfaces can be installed.
