Air pressure relief valve for the compressor
In Stock
Compressor
Model
SCC-ZA-10-SAFETY-VALVE
Manufacturer
Specialist
from 1 039,50 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 3 variants
Name
Model
Price
Availability
Qty
Action
SCC-ZA-10-SAFETY-VALVE
Air pressure relief valve for the compressor
Compressor=7 kW
SCC-ZA-10-SAFETY-VALVE
1 039,50 UAH
In Stock
SCC-ZA-20-SAFETY-VALVE
Air pressure relief valve for the compressor
Compressor=11 kW
SCC-ZA-20-SAFETY-VALVE
1 663,20 UAH
In Stock
SCC-ZA-30-SAFETY-VALVE
Air pressure relief valve for the compressor
Compressor=15 kW
SCC-ZA-30-SAFETY-VALVE
2 338,86 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description

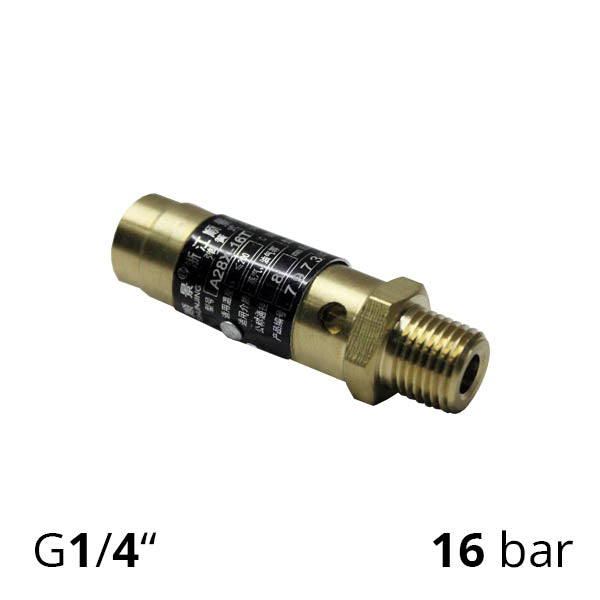

Emergency air compressor pressure relief valve 1/4″ — a safety element for protection in case of sensor failure, relay malfunction, or incorrect controller settings. The model is non-adjustable with a preset max. 16 atmospheres. If the air compressor becomes uncontrollable due to a failure in the control circuit and excessively compresses air, the emergency relief valve will release it, reducing it to 16 bar, ensuring the integrity of parts and pipelines below the circuit. Key features of the Specialist compressor safety valve 1/4″:
-
Durable Viton seals.
Temperature-resistant Viton gaskets withstand the contents of compressor oil in hot air and offer excellent sealing in the closed state; -
Reliable mechanical protection.
The emergency valve operates automatically thanks to a spring mechanism, and the quality spring and simple design make it more reliable compared to adjustable counterparts; -
Brass body.
Strong brass resists pneumatic pressure up to 16 bar, and is corrosion-resistant.
| Inlet thread | int. 1/4″ |
|---|---|
| Relief opening pressure | 16 bar (1.6 MPa) |
| Valve material | Brass body, Viton rubber seal |
| MAX temperature | 120 °C |

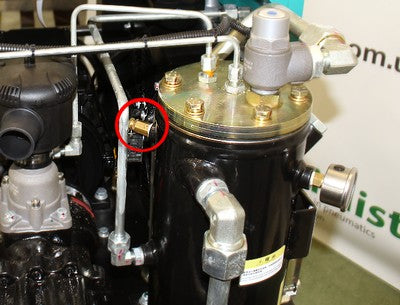

This relief valve can be used both inside screw compressors up to 16 bar, and with piston installations and other pneumatic systems where pressure limitation is needed for safety. When choosing a valve for "Specialist" compressor brand, the device is installed on an air-oil separator (separation tank):
- SCC-ZA-10-SAFETY-VALVE fits screw compressors 7.5 kW with a capacity of up to 1.2 cubic meters per minute;
- SCC-ZA-20-SAFETY-VALVE — for 11 kW, up to 1.7 m3/min;
- SCC-ZA-30-SAFETY-VALVE — for 15 kW up to 3.8 m³/min.
When noise occurs in the compressor, it should be stopped and examined by a specialist.
Hissing from the safety valve indicates pressure relief, which may be related to incorrect sensor operation, program setting error, or malfunction of the valve itself (cheap parts may have SOX/NBR seals or springs, causing faster failure due to temperature and oil exposure).
Why buy safety valves and other compressor repair parts from Specialist (Ukraine)?
Specialist enables you to purchase spare parts for screw air compressors. We keep spare parts and consumables in stock at warehouses in Dnipro city and Lviv city for the assembly, servicing, and repair of SCC-ZA models. These typical screw compressor parts can also be used for European and Chinese analogues — call us to select a part and verify its parameters and dimensions. We only import quality components to ensure the safe and long-term operation of our installations.
