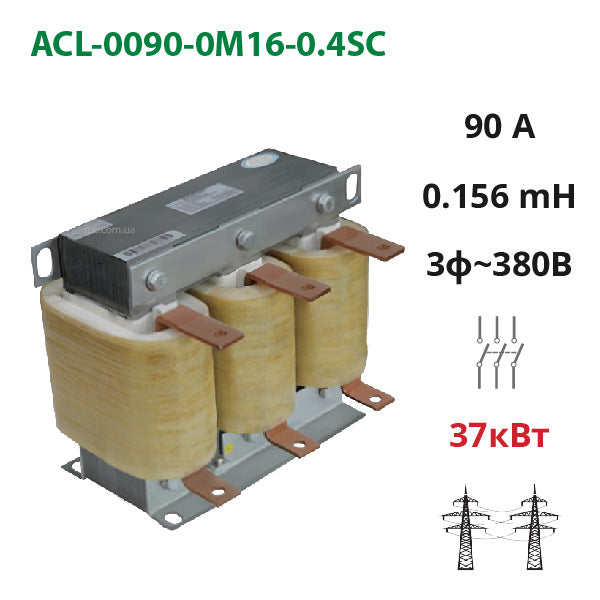

Mains (input) choke 90A, 380V, 37 kW, 0.156 mH (ACL-0090-0M16-0.4SA)
In Stock
Product Code:
SPLC-ACL-0090-0M16-0.4SA
Brand:
Specialist
11 723,28 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Three-phase AC input reactor (ACL-0090-0M16-0.4SA) is designed for installation at the input of frequency converters 37 kW or other electric drives to eliminate mutual influence of powerful equipment powered by one network on 3 phases, 380 V. The input reactor smooths the current harmonics making them more gentle and protects devices from input overvoltage. The three-phase reactor is structurally three inductive coils, each connected to a phase through input-output terminals.
Line reactor functions:
- current smoothing;
- protection against electrical overvoltages;
- power improvement.
| Model | ACL-0090-0M16-0.4SA |
|---|---|
| Power | 37 kW |
| Operating Voltage | 3 phases 380 V |
| Voltage Drop | less than 2% |
| Rated Frequency | 50/60 Hz |
| Rated Current | 90 A |
| Maximum Current | 150% of nominal no more than 60 s |
| Inductance | 0.156 mH |
| Insulation Class | F, H |
| Protection Class | IP00-IP22 |
| Resistance Capability | AC 3000 V, 50Hz, 5 mA, 10 s |
| Insulation Resistance | DC 1000 V ≥ 100 MΩ |
| Temperature | from -25 to +45° C |
Connecting the Input Reactor to Frequency Converter
