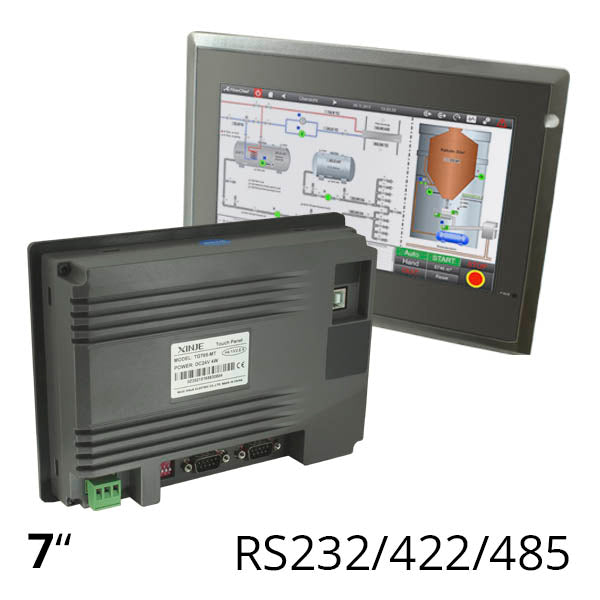

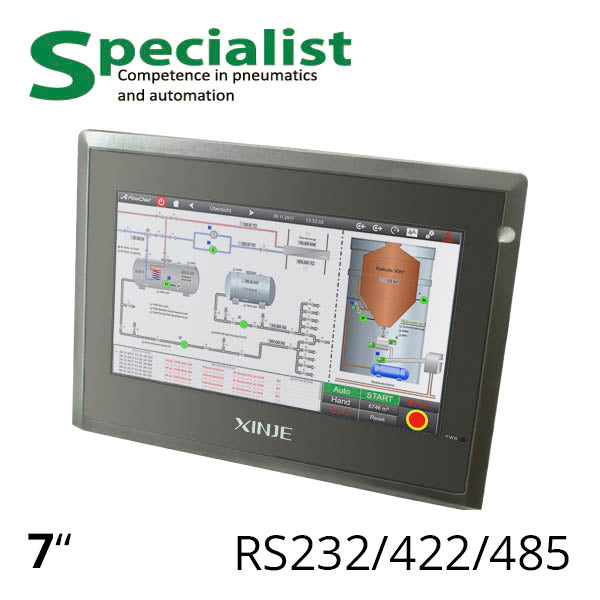

The TG765-MT is an operator control touch panel by Xinje Touchwin with a high-quality 7-inch display 800×480, supporting 16 million colours and adjustable brightness. It features USB, fast loading and supports image formats bmp and jpeg, with a large base of user-defined 3D models and animations. Can be used as a control panel for PLCs — has two communication ports supporting RS-232/422/485.
The TG765-MT operator panel model supports all functions that were in older THxxx-MT models, but has more memory and faster performance.
| Display | |
|---|---|
| Type | TFT-LCD display |
| Sensor | Resistive |
| Diagonal | 7 inches |
| Resolution | 800×480 pixels |
| Brightness | 200 cd/m2 |
| Colour | 16 million colours |
| Screen Size | 154.08×85.92 mm |
| Interface | |
| COM ports for PLC connection | 1 port RS-232/422/485 |
| Data loading | 1 port RS-232/485 |
| USB1 | 1 port USB-A (according to USB2.0) |
| USB2 | 1 port USB-B (according to USB2.0) |
| Power Supply | |
| Power Voltage | 24V |
| Current | 200mA |
