Solenoid valve stainless high temperature 3/8″ SV-SH-ES-22NC-10 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Solenoid valve stainless high temperature 3/8″ SV-SH-ES-22NC-10 series

Name: Solenoid valve stainless high temperature 3/8″ SV-SH-ES-22NC-10 series
Brand: Specialist
SKU: SV-SH-ES-22NC-10-DC24V
Price: 5215.02 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Час доставки

60 днів

Thread size

G ⅜

Model

Manufacturer

Specialist

from 5 215,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-SH-ES-22NC-10-DC24V

Solenoid valve stainless high temperature 3/8″ SV-SH-ES-22NC-10 series

Power Voltage=DC24V Час доставки=60 днів Thread size=G ⅜

SV-SH-ES-22NC-10-DC24V

5 215,02 UAH

In Stock

SV-SH-ES-22NC-10-AC220V

Solenoid valve stainless high temperature 3/8″ SV-SH-ES-22NC-10 series

Power Voltage=AC220V Час доставки=60 днів Thread size=G ⅜

SV-SH-ES-22NC-10-AC220V

5 215,02 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ⅜"

Coil voltage

AC220V, DC24V

Матеріал диску

Stainless steel AISI 316 SS

Матеріал ущільнення

PTFE

Body material

Stainless steel AISI 316 SS

Nominal diameter

TWO 10

Тип контролю

Electromagnetic

Delivery time

60 днів

Description

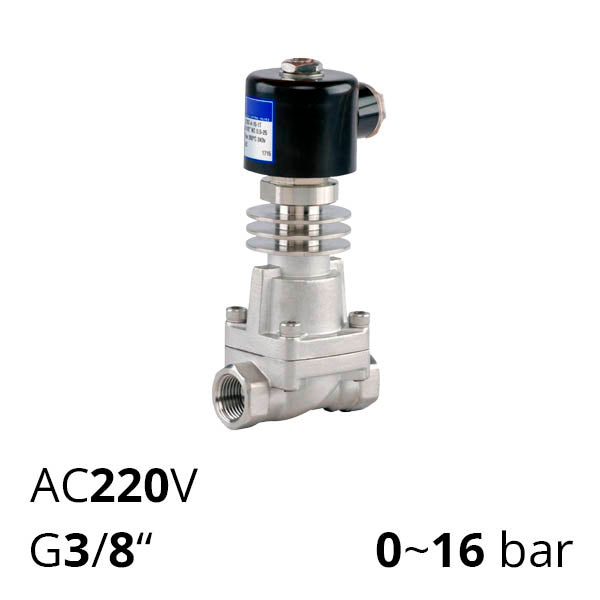

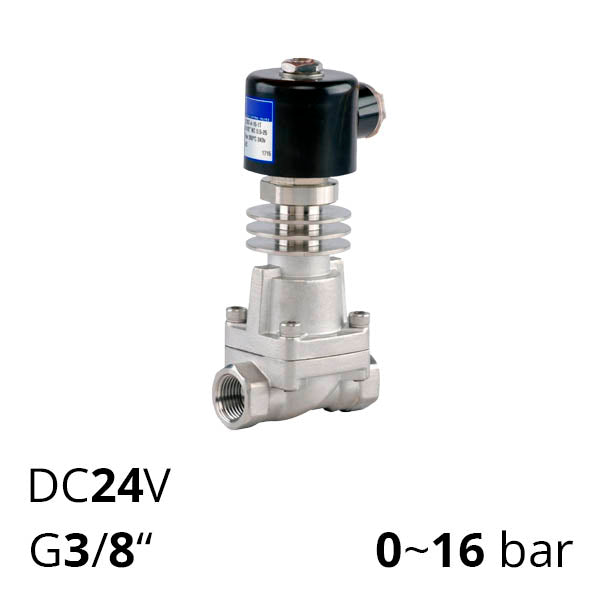

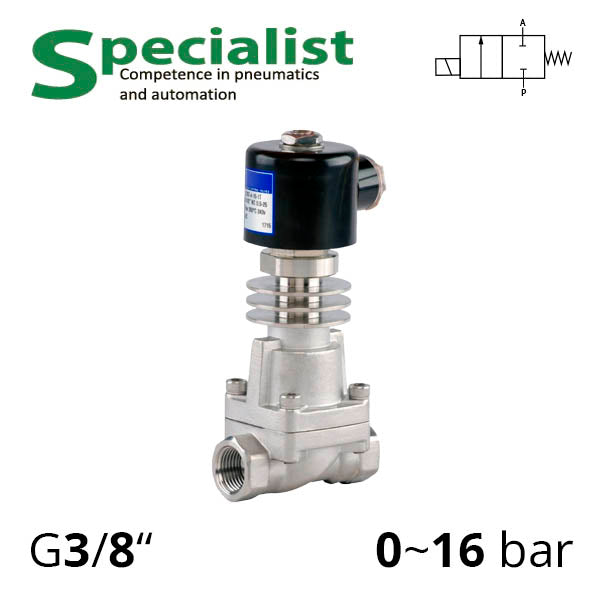

The stainless steel high temperature solenoid valve series SV-SH-ES-22NC-10 is a two-way two-position normally closed piston-type shut-off valve, specially designed to work with environments at high temperatures up to 250°C and high pressure up to 16 bar. Often used in industry as cut-off electromagnetic valves for water steam, shut-off of hot water pipelines, air, etc.

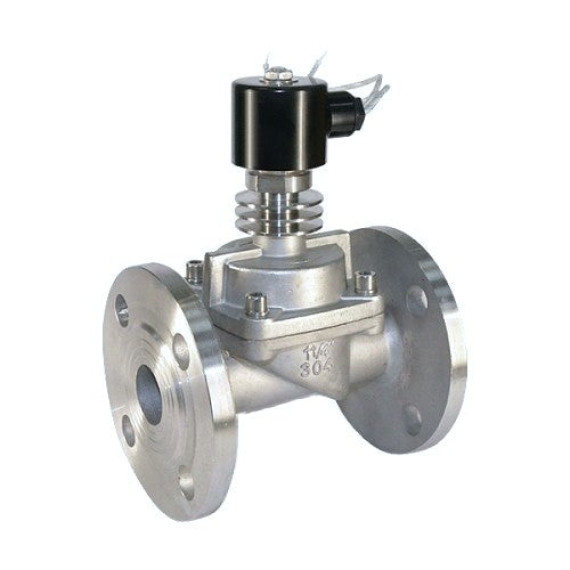

The solenoid valve has an internal cylindrical thread G 3/8″ and solenoid supply voltage AC 220V or DC 24V. These stainless steel valves can be supplied not only with a threaded connection but also with a flanged connection. If necessary, we can supply valves with an electric actuator or pneumatic actuator for working with viscous substances.
