Special

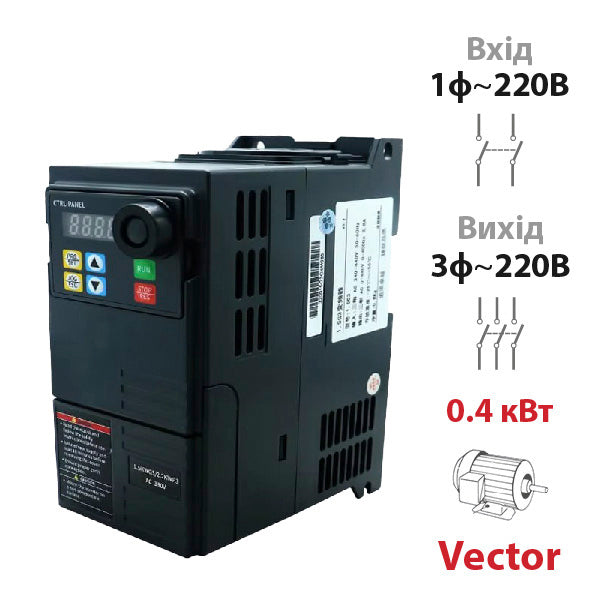

Vector frequency converter 0.4 kW, 1F-3F 220V (SPLC-HS320-0R4G2)

Do you have any questions about the product?
We will be happy to answer them in messengers

Vector frequency converter 0.4 kW, 1F-3F 220V (SPLC-HS320-0R4G2)

Name: Vector frequency converter 0.4 kW, 1F-3F 220V (SPLC-HS320-0R4G2)
Brand: Specialist
SKU: SPLC-HS320-0R4G2
Price: 5619.72 UAH
Availability: InStock

In Stock

Product Code:

SPLC-HS320-0R4G2

Brand:

Specialist

7 493,42 UAH

-25%

5 619,72 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar and vector control

Output frequency

0 to 400 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

0.4 kW

Description

Low-power vector frequency inverter 400 W 220 Volts SPLC-HS320-0R4G2 series HS320 should be powered by a household network 220V and control a three-phase asynchronous motor 220 V with a power of up to 0.4 kW with a nominal current of no more than 2.1 Amperes. These frequency inverters 0.4 kW are used to control the rotation speed of various machines. They can work with a water supply pump, grinding machine drive, CNC and other loads where it is necessary to maintain torque over a wide range of electric motor speeds with low and infrequent overloads.

The inverter SPLC-HS320-0R4G2 at 0.4kw has a removable control panel. This allows placing a standalone device in a cabinet with one frequency inverter, and bringing its control panel to the front panel.

Table — Main technical parameters of the frequency inverter 220V SPLC-HS320-0R4G2
Input Voltage	1Ph 220 V
Output Voltage	3Ph 220 V
Output Current	2.1 A
Output Power	0.4 kW
Output Frequency Range	from 0 to 400.0 Hz
Protection Degree EN 60529	IP20
