Discrete expansion modules SPLC-A16XDP up to 8 inputs and 8 outputs for Haiwell controllers
In Stock
Product Code:
SPLC-A16XDP
Brand:
Haiwell
6 525,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

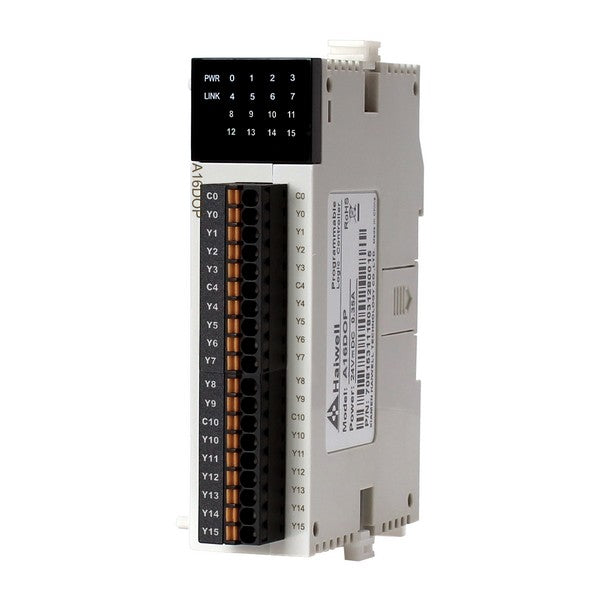

SPLC-A16XDP digital expansion modules for the Haiwell A series controllers offer an additional 8 discrete inputs and 8 discrete outputs for PLCs operating with Haiwell Happy software. The module features:
- Connects to A series controllers through a special connector that transmits data and power.
- Supports PNP transistor type discrete output;
- Features an ultra-thin module design, saving space for installation in cabinets or panels.
| Module Power Supply | 24 V DC, max. 0.2 A, power less than 4.8 W | |
|---|---|---|
| Input | Number of Discrete Inputs | 8 DI |
| Action | ON > 3.5 mA OFF < 1.5 mA |
|
| Input Signal | no contact voltage or NPN/PNP | |
| Input Impedance | ≈4.3 kΩ | |
| Max. Input Current | 10 mA | |
| Response Time | 6.4 ms by default, adjustable from 0.8 to 51.2 ms | |
| Output | Number of Discrete Outputs | 8 PNP Transistor |
| Max. Resistive Load | 0.5 A/1 point, 2 A/4 COM points | |
| Max. Inductive Load | 50 W/24 V DC | |
| Max. Lamp Load | 12 W/24 V DC | |
| Min. Load | 2 mA | |
| Voltage Characteristic | 30 V DC | |
Connection diagram for PNP transistor output
Example of input connection diagram
