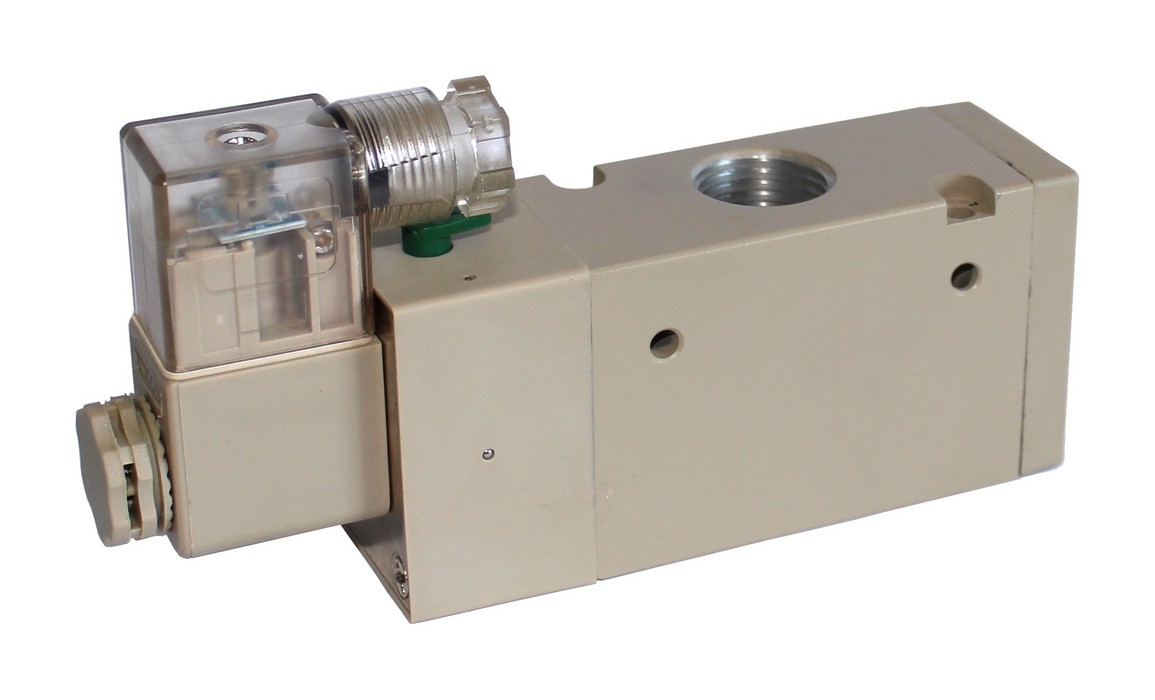

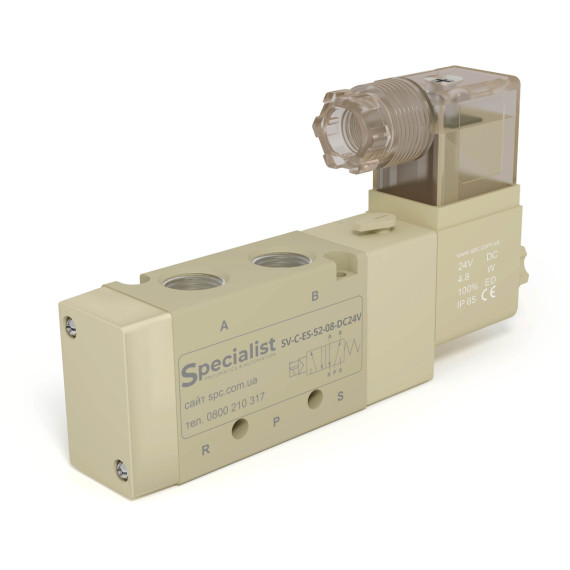

Pneumatic distributor 3/2 with one-way electropneumatic control SV-C series (D, E)

The three-line, two-position 3/2 pneumatic distributors with unilateral electro-pneumatic control and spring return are designed for operation with compressed air at a working pressure of 1.5-8.5 bar. They can be used to control single-acting pneumatic cylinders or for other applications.

The two-way pneumatic distributors have three body ports marked with letters or numbers:

1. "P" — inlet for connecting compressed air supply
2. "A" — outlet for connecting to the consumer line
3. "S" — exhaust port for releasing pressure from the outlet to the atmosphere (it is recommended to install a silencer on the exhaust port to reduce noise levels and also to protect the air valve from external contamination)

All three ports have the same thread connection size. Through the internet-shop basket, you can buy 3/2 distributors with internal cylindrical thread G1/8″, G1/4″, G3/8″, or G1/2″. Distributors with different threads can be ordered through a manager.

The 3/2 pneumatic check valves with unilateral electric control operate monostable (occupy one fixed position in the absence of a control signal):

• "NC" — normally closed (when there is no electrical signal, the pressure in the consumer line is relieved, as outlet 2 is connected to exhaust port 3)
• "NO" — normally open (without a signal, compressed air is supplied to outlet 2 from inlet 1).

The client has the option to select a coil with the necessary electrical characteristics:

• DC12V — direct current, voltage 12 Volts
• DC24V — direct current, voltage 24 Volts
• AC220V — alternating current, voltage 220 V

On order, we supply explosion-proof electromagnetic coils, with or without a diode on the connector.

Pneumatic distributors are divided into series C, D, and E, which differ in compressed air flow rate and connection port sizes.
