Name: Bronze fitting series SF-Z2601 herringbone fitting with external thread
Brand: Specialist
SKU: SF-Z2601 4,5-M5
Price: 31.80 UAH
Availability: InStock

All about the product
Technical specifications
Reviews (0)
Related Products
Similar Products

Technical specifications

Diameter

4.5 мм, 6 мм, 7 мм, 8 мм, 9 мм, 10 мм, 12 мм, 14 мм, 16 мм, 17 мм

Connection type

With external thread, Tree

Thread

G 1/2", G 1/4", G 1/8", G 3/8", M5

Body material

Nickel-plated bronze

Inlet pressure

35 bar

Variations

Union

Delivery time

60 днів, 1 день

Fitting type

Direct

Description

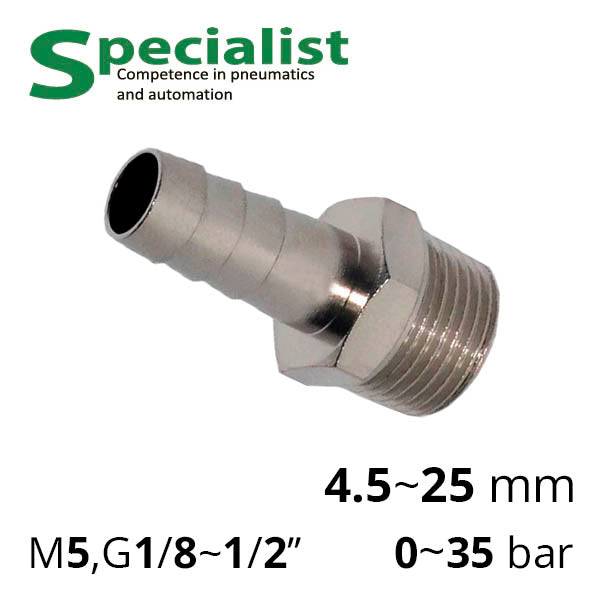

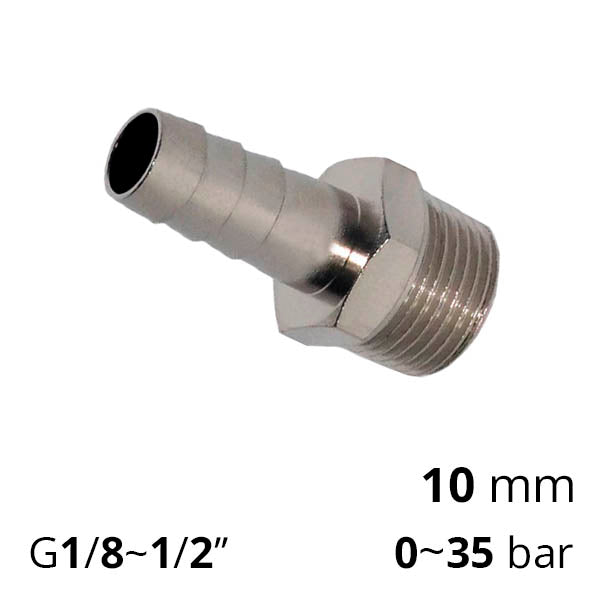

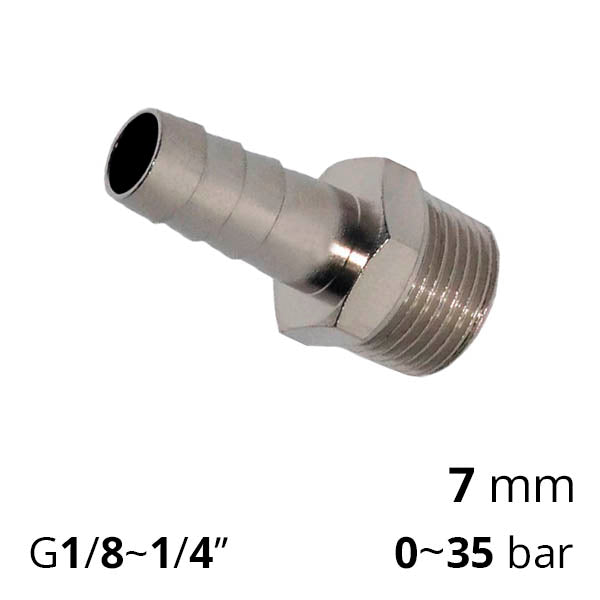

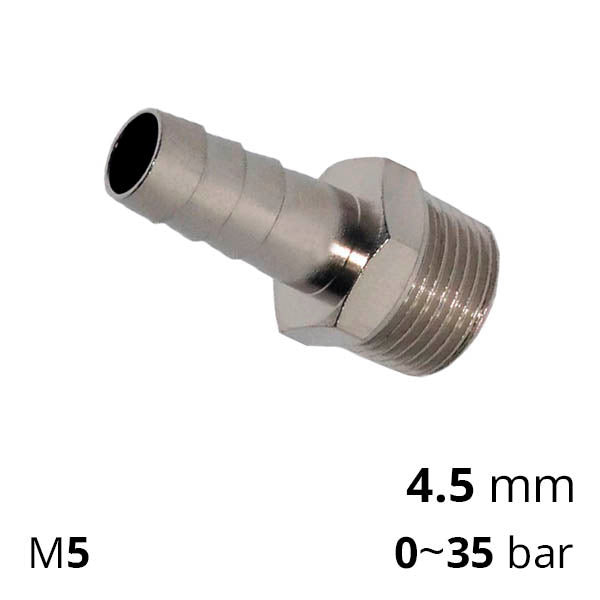

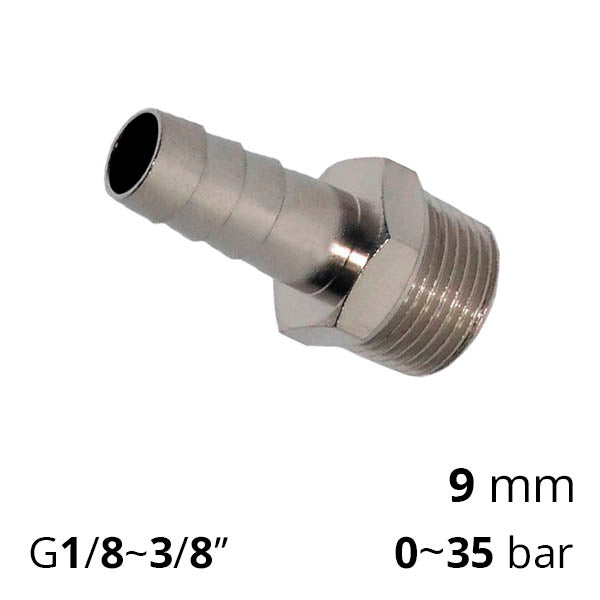

Bronze threaded fitting series SF-Z2601 is a metal straight quick-detachable herringbone fitting for a tube with an internal diameter of ø4.5~25 mm on one side and with external metric or pipe cylindrical threading ("male"): M5, G1/8", G1/4", G3/8", G1/2" or G3/4" on the other side.

Nickel-plated bronze is used for manufacturing metal threaded fittings. Fittings of series SF-Z2601 are designed for use with compressed air under high pressure, up to 35 bar (3.5 MPa). When using the fitting for other working mediums compatible with the fitting material, the allowable working pressure and temperature may differ from the tabulated values specified for compressed air.
