Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Do you have any questions about the product?
We will be happy to answer them in messengers

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Name: Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control
Brand: Specialist
SKU: SV-C-AA-53C-06
Price: 1508.58 UAH
Availability: InStock

In Stock

Центр

C E P

Thread size

G 1/2 G 1/4 G 1/8 G 3/8

Model

Manufacturer

Specialist

from 1 508,58 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 12 variants


Name

Model Price Availability Qty

Action

SV-C-AA-53C-06

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=C Thread size=G 1/8

SV-C-AA-53C-06

1 508,58 UAH

In Stock

SV-C-AA-53E-06

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=E Thread size=G 1/8

SV-C-AA-53E-06

1 508,58 UAH

In Stock

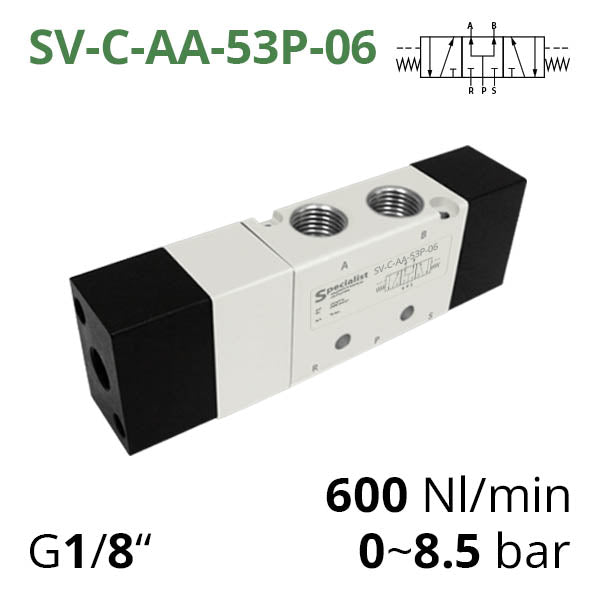

SV-C-AA-53P-06

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=P Thread size=G 1/8

SV-C-AA-53P-06

1 508,58 UAH

In Stock

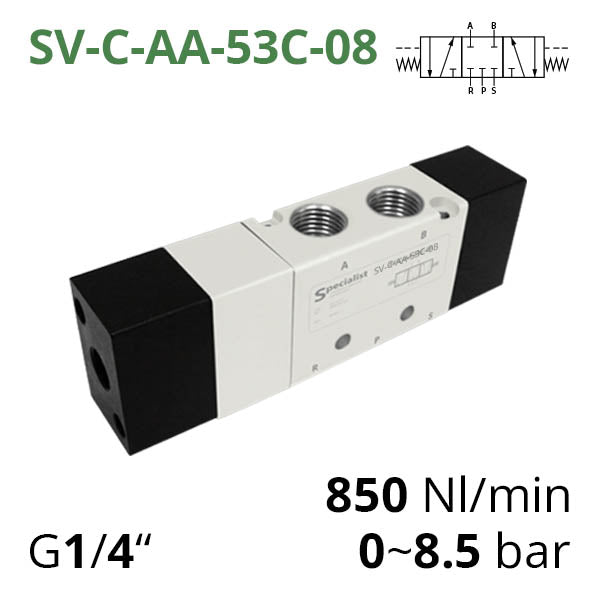

SV-C-AA-53C-08

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=C Thread size=G 1/4

SV-C-AA-53C-08

1 508,58 UAH

In Stock

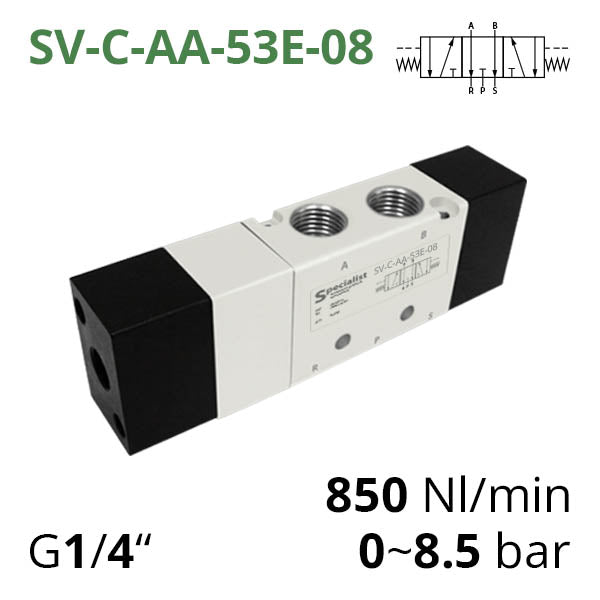

SV-C-AA-53E-08

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=E Thread size=G 1/4

SV-C-AA-53E-08

1 508,58 UAH

In Stock

SV-C-AA-53P-08

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=P Thread size=G 1/4

SV-C-AA-53P-08

1 508,58 UAH

In Stock

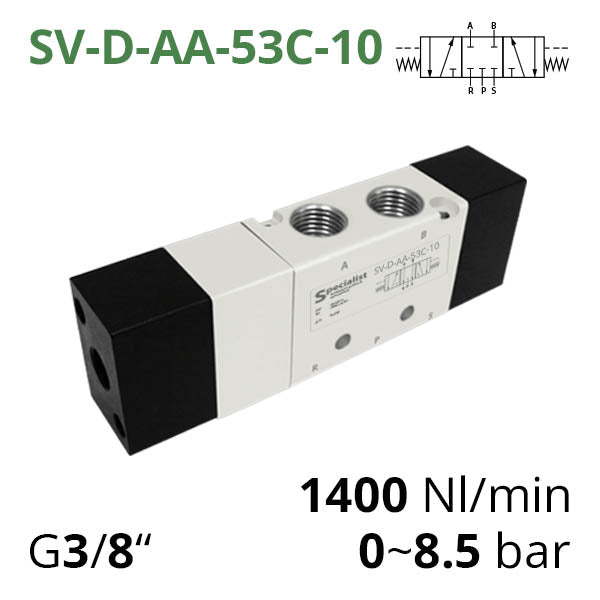

SV-D-AA-53C-10

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=C Thread size=G 3/8

SV-D-AA-53C-10

3 039,18 UAH

In Stock

SV-D-AA-53E-10

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=E Thread size=G 3/8

SV-D-AA-53E-10

3 039,18 UAH

In Stock

SV-D-AA-53P-10

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=P Thread size=G 3/8

SV-D-AA-53P-10

3 039,18 UAH

In Stock

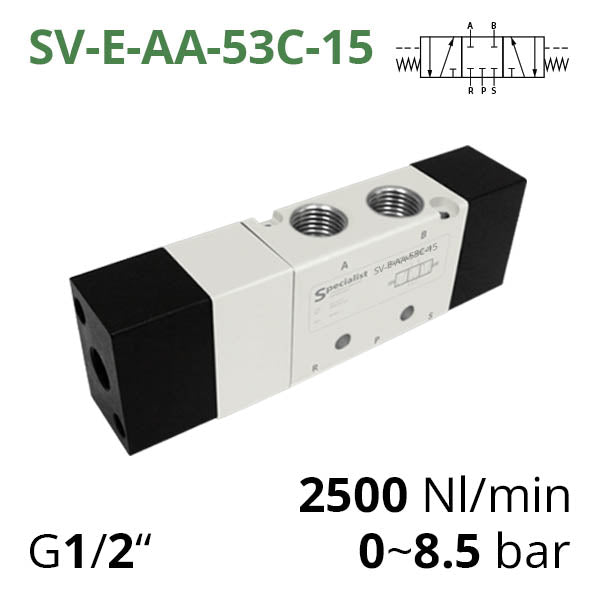

SV-E-AA-53C-15

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=C Thread size=G 1/2

SV-E-AA-53C-15

3 410,40 UAH

In Stock

SV-E-AA-53E-15

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=E Thread size=G 1/2

SV-E-AA-53E-15

3 410,40 UAH

In Stock

SV-E-AA-53P-15

Pneumatic distributor 5/3 series SV-C, SV-D, SV-E with pneumatic control

Центр=P Thread size=G 1/2

SV-E-AA-53P-15

3 410,40 UAH

In Stock

Technical specifications

Thread

G 1/2", G 1/4", G 1/8", G 3/8"

Центр

C, E, P

Description

The 5/3 valve with a closed centre can be used to control double-acting pneumatic cylinders. The working air pressure in the system is from 0 to 8.5 bar.

5/3 valves have five lines and three positions. The connection ports are designated:

P — inlet port
A — output 1
B — output 2
R1 — exhaust from output 1
R2 — exhaust from output 2

When ordering, the customer must select the required connection thread size — G 1/8″, 1/4″, 3/8″ or 1/2″.

Each of the two side ends of the valve has an G 1/8″ threaded port for connecting the pneumatic control signal. This valve has two-sided pneumatic control.

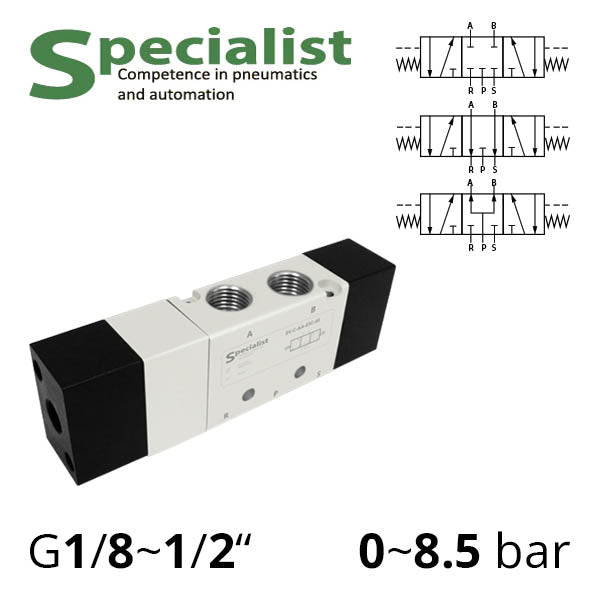

The 5/3 distribution valves are monostable, meaning in the absence of control air signals, the valve remains in a fixed position, depending on the centre type:

Closed centre "C" — when there are no signals, the return spring ensures the spool valve takes a middle position, blocking all operating lines. The same happens with simultaneous application of both signals at equal pressure;
Open centre "E" — the middle position connects the outputs to the exhaust ports with air supply closed;
Supply to both outputs "P" — in the middle position, air is supplied from the inlet to both outputs, with exhaust ports closed.
