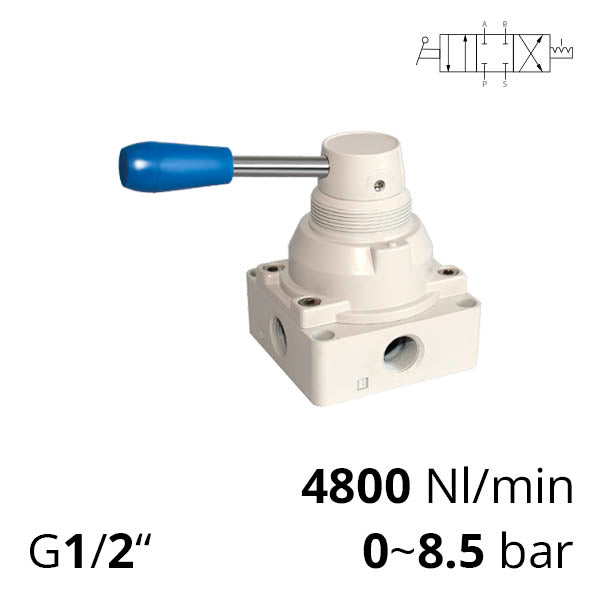

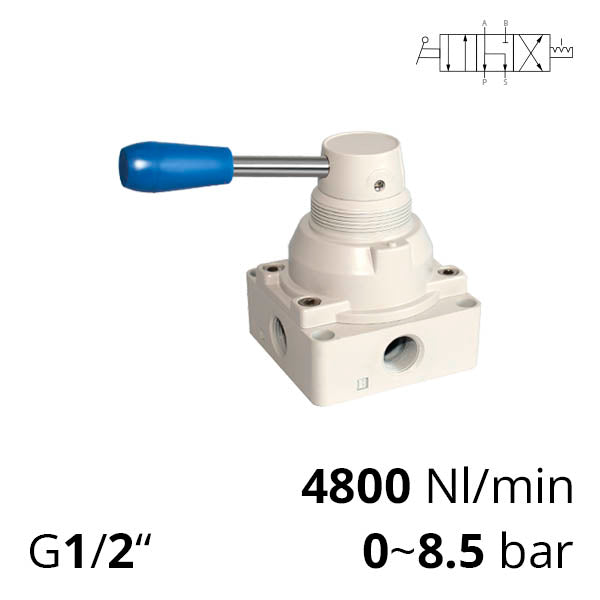

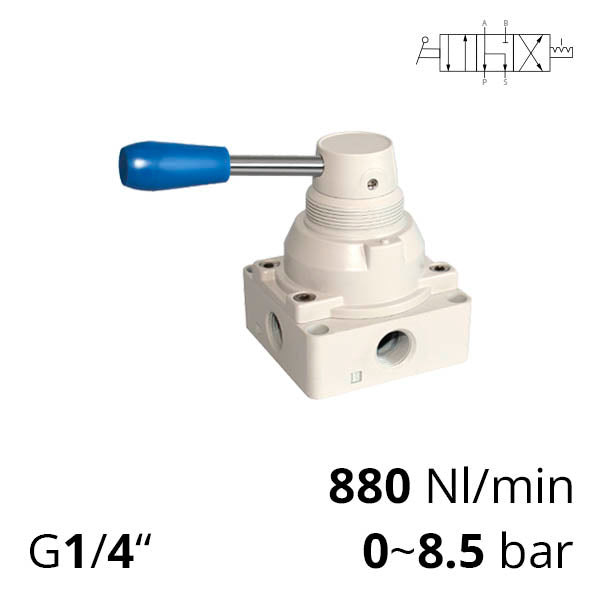

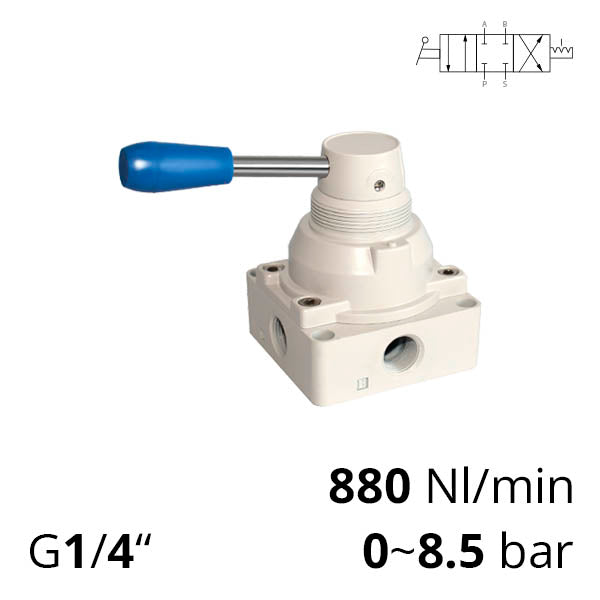

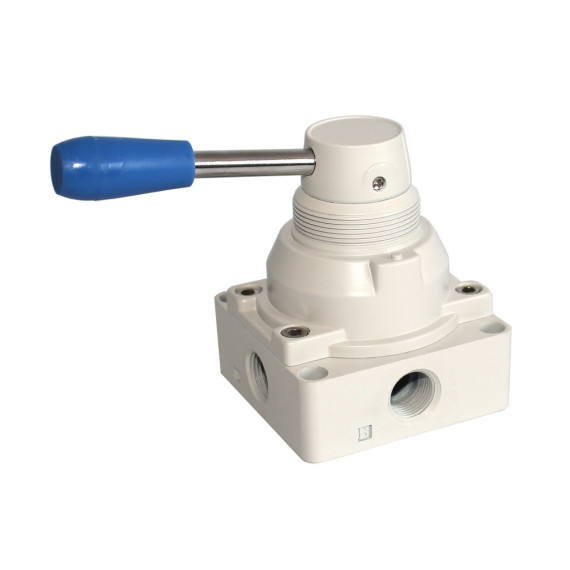

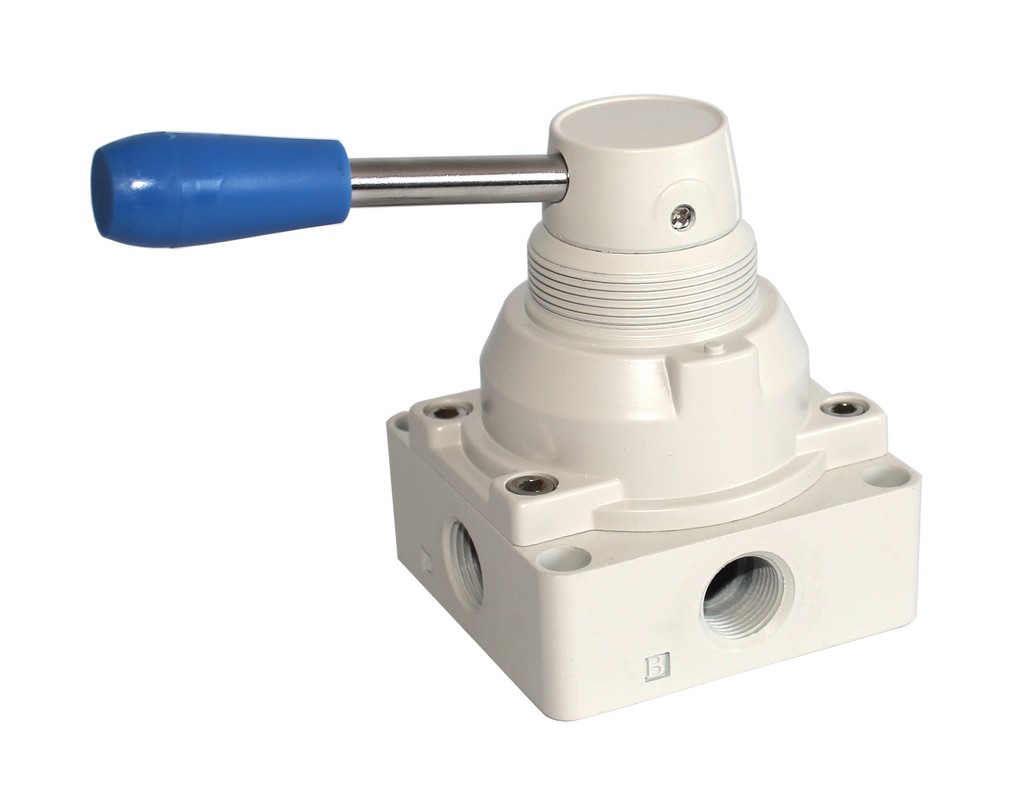

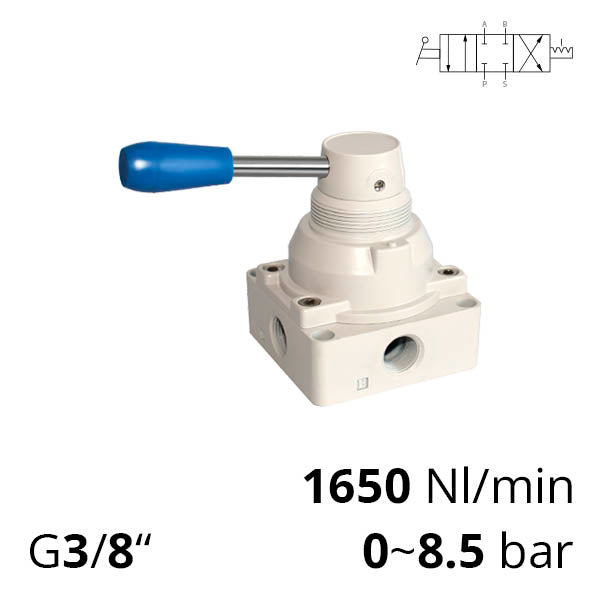

4/3 or 4/2 Series SV-J-H Pneumatic Valves with a rotary lever for manual control are designed to operate with compressed air at a working pressure of 0-10 bar. They are easy to install individually or in groups on operator panels and machine control stands. Four-way crane pneumatic valves have four ports on the body marked with letters or numbers:
All connection ports have the same internal cylindrical thread size — G1/8″, G1/4″, G3/8″, or G1/2″.
| Model | SV-J-H-4*-08 | SV-J-H-4*-10 | SV-J-H-4*-15 | SV-J-H-4*-20 | SV-J-H-4*-25 |
|---|---|---|---|---|---|
| Connection | G1/4″ | G3/8″ | G1/2″ | G3/4″ | G1″ |
| Nominal Air Flow | 880 l/min | 1650 l/min | 4800 l/min | 5200 l/min | 6000 l/min |
| Lines/Positions Number | 4/2 or 4/3 | ||||
| Working Medium | Air, filtered to 40 microns | ||||
| Working Pressure Range | 0-8.5 bar | ||||
| Operational Temperature Range | -10...+60° C (for dry air with no moisture) | ||||
