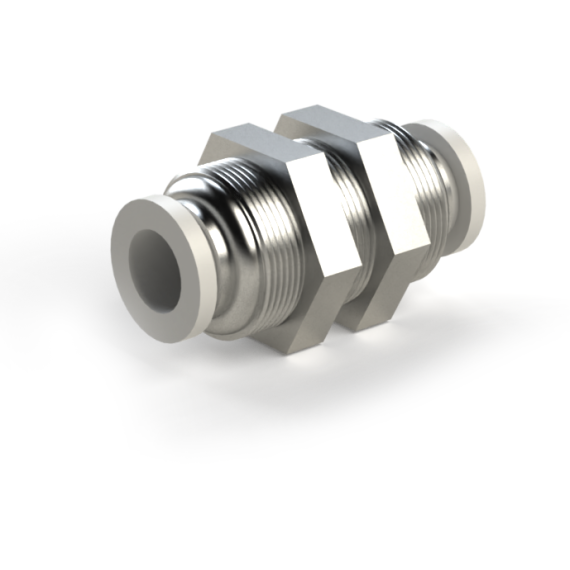

Collet fitting of the SF-EPM series with mounting nuts and a plastic collet

Name: Collet fitting of the SF-EPM series with mounting nuts and a plastic collet
Brand: Specialist
SKU: SF-EPM 4
Price: 316.74 UAH
Availability: InStock

In Stock

Tube O.D.

12 mm 10 mm 8 mm 6 mm 4 mm

Model

SF-EPM 4

Manufacturer

Specialist

from 104,76 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 5 variants


Name

Model Price Availability Qty

Action

SF-EPM 12

Collet fitting of the SF-EPM series with mounting nuts and a plastic collet

Tube O.D.=12 mm

SF-EPM 12

316,74 UAH

In Stock

SF-EPM 10

Collet fitting of the SF-EPM series with mounting nuts and a plastic collet

Tube O.D.=10 mm

SF-EPM 10

265,56 UAH

In Stock

SF-EPM 8

Collet fitting of the SF-EPM series with mounting nuts and a plastic collet

Tube O.D.=8 mm

SF-EPM 8

260,69 UAH

In Stock

SF-EPM 6

Collet fitting of the SF-EPM series with mounting nuts and a plastic collet

Tube O.D.=6 mm

SF-EPM 6

121,80 UAH

In Stock

SF-EPM 4

Collet fitting of the SF-EPM series with mounting nuts and a plastic collet

Tube O.D.=4 mm

SF-EPM 4

104,76 UAH

In Stock

Technical specifications

Tube O.D.

4 mm, 6 mm, 8 mm, 10 mm, 12 mm

Connection type

Collet fitting

Body material

Plastic

Inlet pressure

9.5 bar

Variations

The connector is straight through

Fitting type

Direct

Description

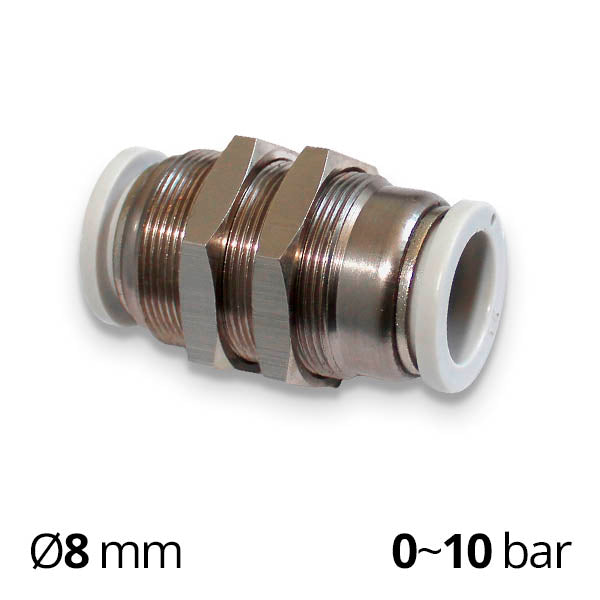

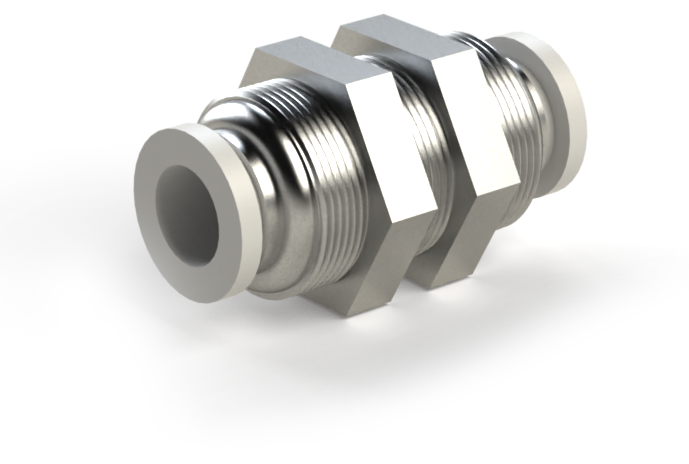

The SF-EPM series straight push-in fitting has a direct push-in connection for two identical pneumatic tubes with an outer diameter of 4, 6, 8, 10, or 12 mm. The body of the fitting has a metric thread cut on the outside, allowing it to be embedded in a panel or cabinet wall and secured with two mounting nuts.

SF-EPM fittings are made of nickel-plated bronze (threaded part, nuts) and technical plastic (collet part). An NBR gasket is used for sealing the pipeline. Push-in connectors are designed for use with compressed air at pressures up to 10 bar. Working temperature range from minus 10 to plus 60°C.
