Collet adapter direct SF-EPG for tubes (lifeguard)

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

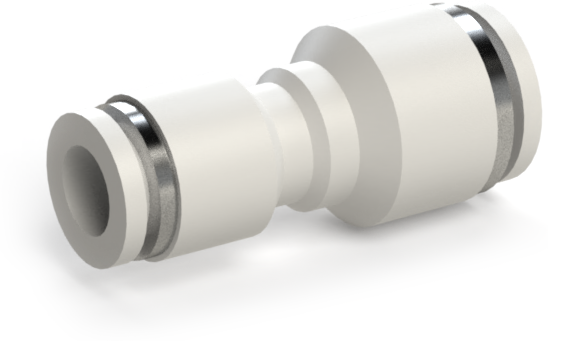

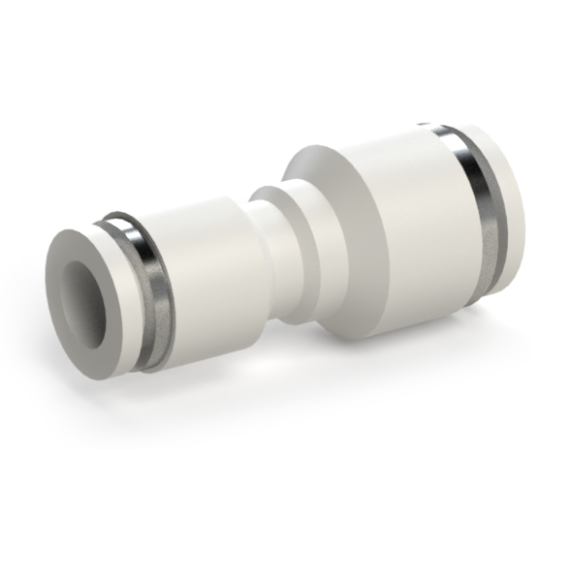

Collet adapter direct SF-EPG for tubes (lifeguard)

Name: Collet adapter direct SF-EPG for tubes (lifeguard)
Brand: Specialist
SKU: SF-EPG 6-4
Price: 33.12 UAH
Availability: InStock

In Stock

Діаметр менший

4 мм 6 мм 8 мм 10 мм

Діаметр більший

6 мм 8 мм 10 мм 12 мм

Model

Manufacturer

Specialist

from 31,20 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 6 variants


Name

Model Price Availability Qty

Action

SF-EPG 6-4

Collet adapter direct SF-EPG for tubes (lifeguard)

Діаметр менший=4 мм Діаметр більший=6 мм

SF-EPG 6-4

33,12 UAH

In Stock

SF-EPG 8-6

Collet adapter direct SF-EPG for tubes (lifeguard)

Діаметр менший=6 мм Діаметр більший=8 мм

SF-EPG 8-6

31,20 UAH

In Stock

SF-EPG 10-8

Collet adapter direct SF-EPG for tubes (lifeguard)

Діаметр менший=8 мм Діаметр більший=10 мм

SF-EPG 10-8

46,80 UAH

In Stock

SF-EPG 12-10

Collet adapter direct SF-EPG for tubes (lifeguard)

Діаметр менший=10 мм Діаметр більший=12 мм

SF-EPG 12-10

64,32 UAH

In Stock

SF-EPG 10-6

Collet adapter direct SF-EPG for tubes (lifeguard)

Діаметр менший=6 мм Діаметр більший=10 мм

SF-EPG 10-6

54,60 UAH

In Stock

SF-EPG 12-8

Collet adapter direct SF-EPG for tubes (lifeguard)

Діаметр менший=8 мм Діаметр більший=12 мм

SF-EPG 12-8

68,22 UAH

In Stock

Technical specifications

Tube O.D.

4mm, 6mm, 8mm, 10mm, 12mm

Connection type

Collet fitting

Body material

Plastic

Inlet pressure

9.5 bar

Variations

Reduction adapter

Fitting type

Direct

Description

At Specialist you can buy a straight plastic collet adapter (tube-to-tube) SF-EPG for 2 tubes with different outer diameters of 4, 6, 8, 10, 12, or 16 mm.

The quick-disconnect plastic adapter can be used with compressed air, water, and other media compatible with the product material. Technical plastic is used for manufacturing plastic fittings. An NBR seal is used in the pipeline. When working with compressed air, plastic collet fittings are rated for pressures up to 9.5 bar, with a working temperature range from minus 10 to plus 60°C.

The plastic fitting SF-EPG is designed to connect two pneumatic tubes of different diameters. Thanks to its quick-disconnect connection (collet clamp) SF-EPG makes the installation of pneumatic lines and connection of pneumatic tools faster and more convenient.
