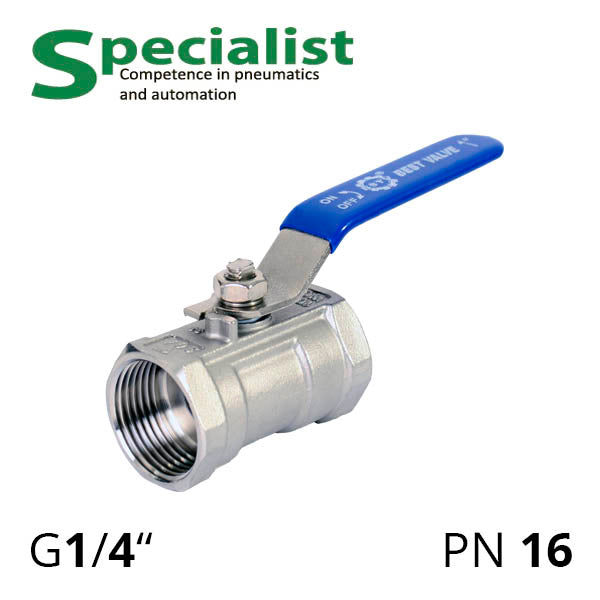

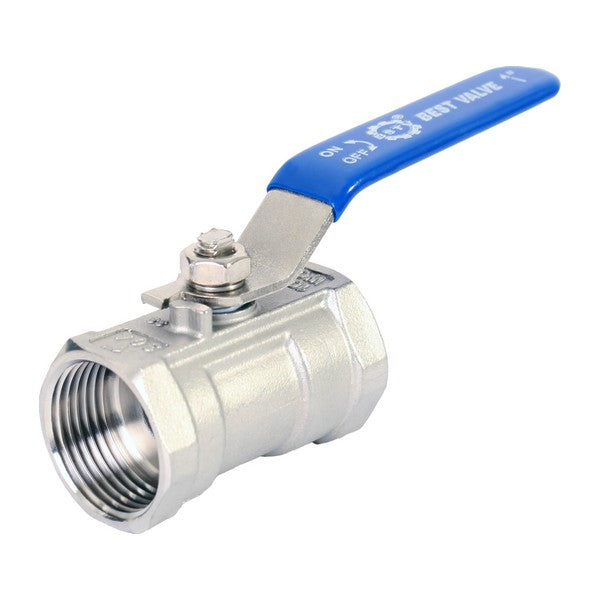

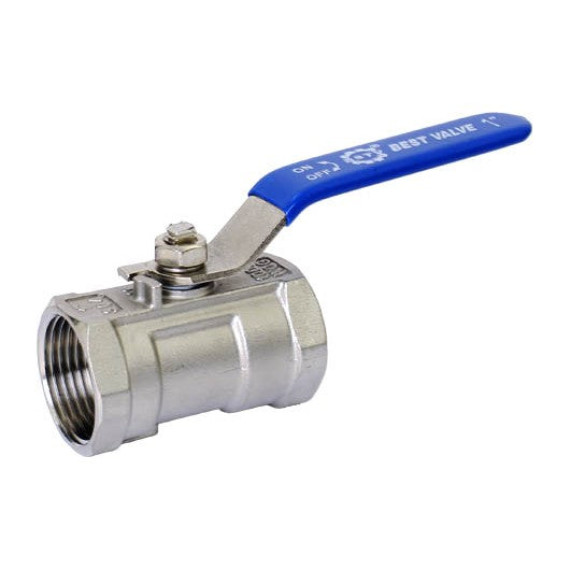

Ball valve coupling 1/4″ stainless steel DU8 with handle SCBV-Q601-16FA-08

Do you have any questions about the product?
We will be happy to answer them in messengers

Ball valve coupling 1/4″ stainless steel DU8 with handle SCBV-Q601-16FA-08

Name: Ball valve coupling 1/4″ stainless steel DU8 with handle SCBV-Q601-16FA-08
Brand: Specialist
SKU: SCBV-Q601-16FA-08
Price: 337.86 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1/4

Model

Manufacturer

Specialist

from 337,86 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q601-16FA-08

Ball valve coupling 1/4″ stainless steel DU8 with handle SCBV-Q601-16FA-08

Diameter of conditional passage=8 Thread size=G 1/4

SCBV-Q601-16FA-08

337,86 UAH

In Stock

Technical specifications

Thread

G 1/4"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Nominal diameter

TWO 8

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

Handled

Description

The SCBV-Q601-16FA-08 series is a female threaded ball valve size 1/4″, with reduced bore and manual drive, made from AISI 304 stainless steel. These ball valves can be installed on cold and hot water pipes, for steam, for food (drinks, potable water, syrup), industrial pipelines for various petroleum products (without sulphur, chlorine, and other aggressive impurities, and substances incompatible with PTFE).

The reduced bore female threaded ball valve SCBV-Q601-16FA-08 features a narrowing and smaller ball size relative to the pipeline diameter. The body is solid and non-detachable, made of stainless steel 201. Marking on the shut-off valve:

1/4″ (corresponds to DN 8 mm)
304 (grade of stainless steel of the ball)
1000 WOG - designed for water, oils and gaseous substances; maximum pressure - 16 bar (1.6 MPa) (depending on temperature).

The PTFE ball valve with teflon seals withstands working temperatures from minus 40 to 180 degrees Celsius (without fluid freezing).
