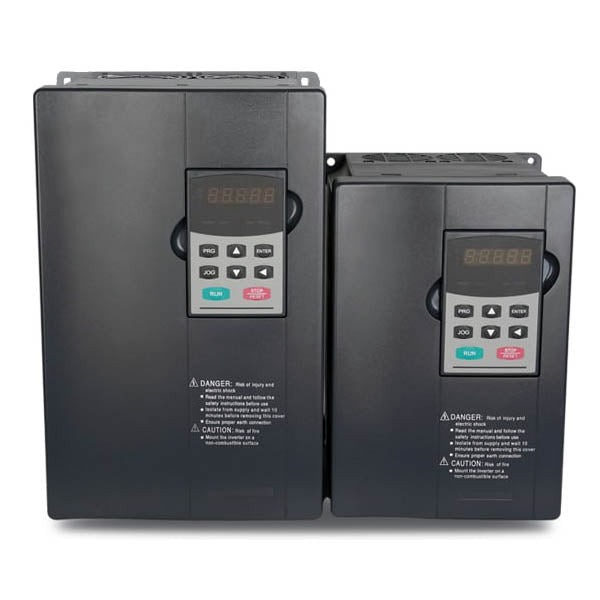

High-performance vector frequency converters of the SPLC-NZ8400-1200G series are designed to control high-load three-phase electric motors 380 V with a power of up to 1200 kW, where overloads may occur, and enhanced control quality is required. These frequency converters have higher microprocessor performance than the SPLC-AT20 series, allowing the SPLC-NZ8000 to perform operations faster and thus provide sensorless vector control with a rotation speed accuracy of ±0.5%. If necessary, the converter can switch to simple scalar control mode U/f with less accuracy and "Pump" mode for working with more powerful motors, but with less load (details below).
The SPLC-NZ8000 converter can also be equipped with an additional PG board (purchased separately). With it, a sensor-encoder can be connected to the converter to monitor the motor speed and rotor position. Vector control with feedback provides increased responsiveness and control accuracy of rotation frequency up to ±0.02%, allows torque management with accuracy up to ±5%, and enables operation with both asynchronous and synchronous motors.
Table — Main technical parameters of converters SPLC-NZ8400-1200G
| Input voltage |
3ph 380 V
|
| Output voltage |
3ph 380 V
|
| Output power |
up to 1200 kW (900 kW in "Pump" mode)
|
| Output frequency range |
from 0.1 to 3200.0 Hz (V/f) |
| Protection degree EN 60529 |
IP20 |
When the frequency converter is installed in a protective cabinet, its control panel (operator panel) can be detached and placed on the front panel. A cable-connector needs to be purchased for this purpose.
Technical specifications of the SPLC-NZ8000 series
Standard features of the SPLC-NZ8400 frequency converter
| Control modes |
Sensorless vector control (SFVC)
Closed-loop vector control (CLVC, with PG)
Volt-frequency (V/F) control |
| Maximum output frequency |
Vector control: 0-320 Hz
V/F control: 0-3200 Hz
|
| Carrier frequency |
1-16 kHz
The carrier frequency is automatically adjusted depending on the load character. |
| Frequency setting resolution |
Digital setting: 0.01 Hz
Analog setting: maximum frequency × 0.025% |
| Starting torque |
Type G: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC, with PG)
Type: 0.5 Hz/100% |
| Speed range |
1:100 (SFVC)
1:1000 (CLVC)
|
| Speed accuracy |
±0.5% (SFVC), ± 0.02% (CLVC, with PG)
|
| Torque control accuracy |
±5% (CLVC, with PG) |
| Overload capacity |
G type: 60 s at 150% of rated current, 3 s at 180% of rated current
P type: 60 s at 120% of rated current, 3 s at 150% of rated current |
| Torque boost |
Automatic boost
Manual boost 0.1%-30.0%
|
| V/F curve |
Linear V/F curve
Multipoint V/F curve
Stepped V/F curve (1.2, 1.4, 1.6, 1.8, quadratic) |
| V/F separation |
Two types: full separation, partial separation |
| Acceleration/deceleration mode |
Linear curve
S-shaped curve
Four groups of acceleration/deceleration time in the range 0.0-6500.0 s
|
| DC braking |
DC brake frequency: from 0.00 Hz to maximum frequency
Braking time: 0.0-100.0 s
Selection of braking current action: 0.0% -100.0%
|
| JOG control |
JOG frequency range: 0.00-50.00 Hz
JOG acceleration/deceleration time: 0.0-6500.0 s
|
| Built-in multiple preset speeds |
Implementation of up to 16 speeds through simple PLC function or combination of terminal states |
| Built-in PID |
Enabling PID regulation of the system in closed loop |
| Auto voltage tuning |
Can provide constant output voltage when the main voltage changes. |
| Overload current and voltage management |
Automatic current and voltage limitation during operation to prevent frequent tripping during current or voltage overload. |
When the simple scalar control is enabled in SPLC-NZ8400-1200G, the motor operates in the “General” load mode:
-
General — general industrial mode for motors that work with roughly equal torque at different speeds (compressors, conveyors, elevators). In this mode, the frequency converter can provide a starting torque of over 150% for acceleration, to overcome friction and inertia.
Individual functions of SPLC-NZ8000
| Support for various PG cards |
Support for PG cards for revolving transformer, differential input, UVW differential input, resolver and open collector input |
| Run through power drop |
Voltage drop is compensated by the feedback load energy, so the drive can continue to operate for a short time. |
| Rated current limitation |
Allows avoiding drive frequency overload failure. |
| High performance |
Control of asynchronous and synchronous motors are implemented through high-performance current vector technology. |
| Time control |
Time range: 0.0-6500.0 min |
| Communication method |
Modbus (standard)
Profibus-DP (optional)
CANlink (optional)
CAN (optional) |
| Protection modes |
Detection of motor short circuit at power-up, protection during input or output phase break, overcurrent, overvoltage, undervoltage, overheating and overload protection. |

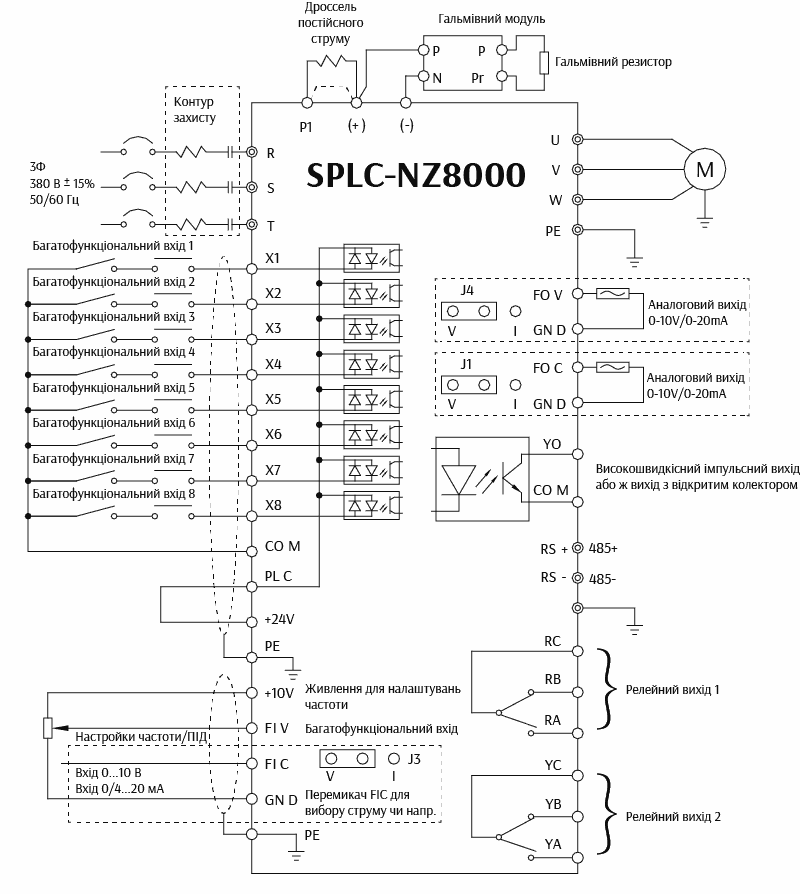

Principle diagram of the frequency converter SPLC-NZ8400-1200G
SPLC-NZ8000 has multifunctional input-output control terminals, whose function can be self-defined in settings — determining the set frequency, giving start-forward command, stop, etc.:
- Inputs: 8 discrete inputs (one of which is high-speed pulse), 2 analog inputs (one 0...10 V or 0...20 mA, the second only for +10...-10 V;
- Outputs: 1 discrete transistor output (high-speed), 2 relays 250 VAC 3 A or 30 VDC 1 A, 2 analog outputs (0...10 or 0...20 mA).
By default, the frequency converter supports the most common communication port in Ukrainian enterprises RS-485 but upon request, these frequency inverters can be supplied with Profibus or CAN data communication board, which will allow easy integration of equipment into any modern industrial network.
