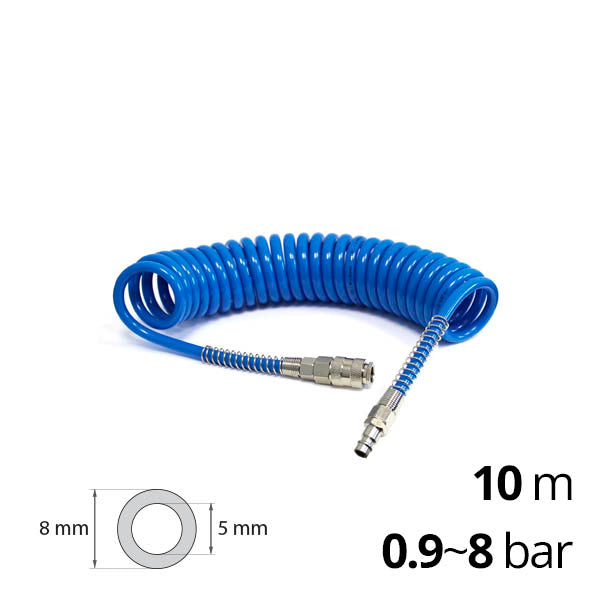

Model SF-EUC-F-8/5-10-B is a polyurethane tube 10 metres long with an outer diameter of 8 mm, an inner diameter of 5 mm, and a wall thickness of 3 mm. It can operate in a pressure range from -0.9 to 8 bar and withstand temperatures from -20°C to 50°C.
Polyurethane (PU) coiled hoses of the SF-EUC-F-8/5-10-B series with couplings are used to supply compressed air to pneumatic tools. It is also permissible to pass other liquids and gases through the flexible pipe that are compatible with polyurethane.

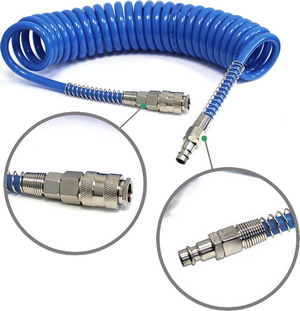

Compared to the SF-EUС series, the SF-EUC-F series spiral tube differs by having two quick-connect fittings (euro rapid - European standard) with a spring to protect the air hose from bending at the end. A quick release "female" is installed on one end of the tube, and a "male" on the other.
| Model | SF-EUC-F-8/5-10-B |
|---|---|
| Outer tube diameter | 8 mm |
| Inner tube diameter | 5 mm |
| Wall thickness | 3 mm |
| Tube material | Polyurethane |
| Working pressure range (air) | from –0.9 to 8 bar |
| Working temperature range | from –20 to 50 °C |
| Pipeline length | 10 m |
The plastic coiled spiral pipeline of the SF-EUC-F-8/5-10-B series is supplied in a 10 metre length and has a blue colour. Thanks to its structure, the coiled hose with rapid fittings retains its shape even after repeated straightening during manual pneumatic tool work, allowing it to coil back into its initial compact state. Quick-release couplings also speed up the connection of pneumatic tools.
